TLD5045EJ 700mA High Integration - DC/DC Step-Down Converter

TLD5045EJ Description

LITIX™ Power TLD5045EJ - 700 mA High integration - DC/DC step-down converter 1 Overview .
The TLD5045EJ is a highly integrated smart LED buck controller with built in protection functions.

TLD5045EJ Features

* Constant current generation
* Wide input voltage range from 5 V to 40 V
* Peak current regulation
* Very low current consumption (< 2 µA) in sleep mode
* Integrated power transistor with low saturation voltage
* Integrated fast freewheeling diode

TLD5045EJ Applications

* Potential applications
* Automotive LED driven exterior lighting: brake, tail, CHMSL, daytime running light, position light

📥 Download Datasheet

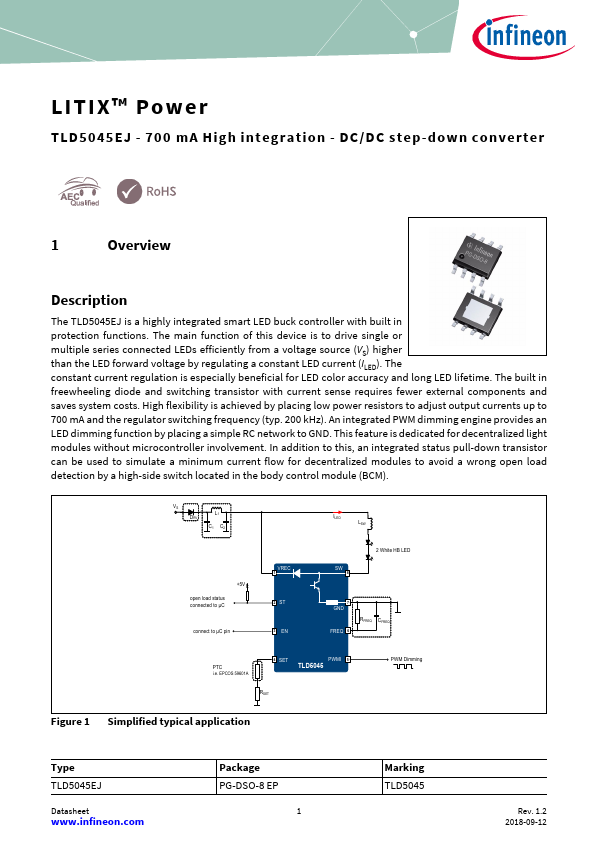

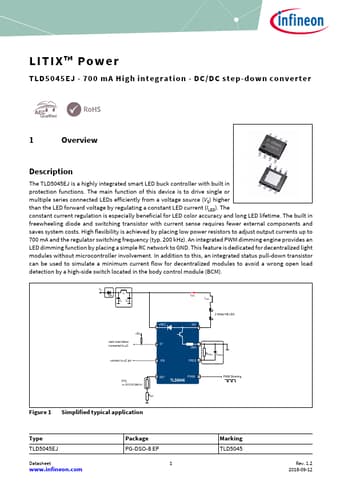

Preview of TLD5045EJ PDF

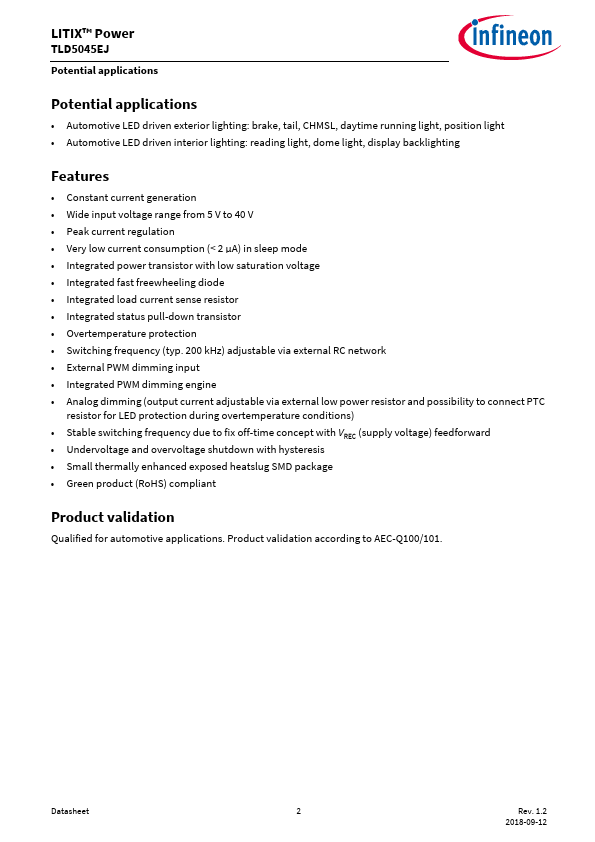

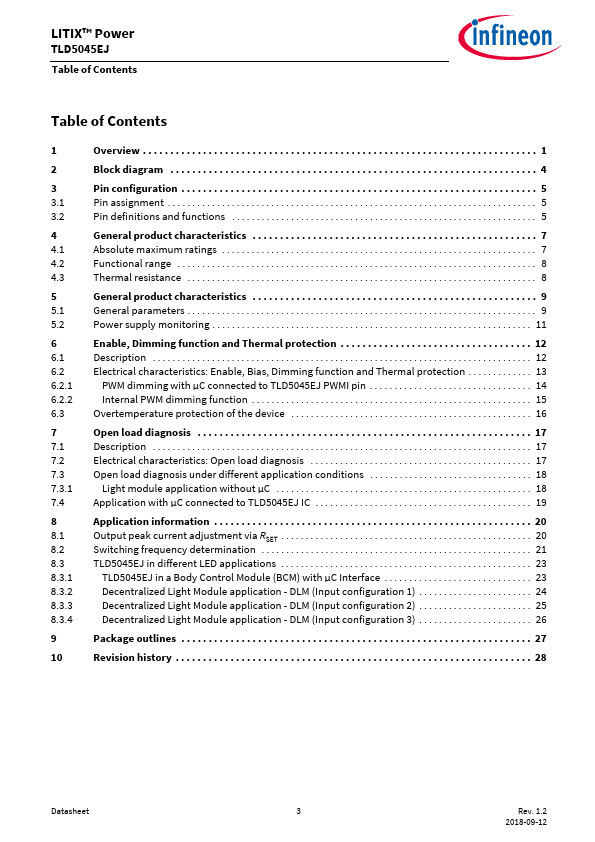

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TLD5045EJ
Manufacturer
Infineon ↗
File Size
519.47 KB
Datasheet
TLD5045EJ-Infineon.pdf
Description
700mA High Integration - DC/DC Step-Down Converter
