TLD5191ES - Power H-Bridge DC-DC controller

TLD5191ES Description

TLD5191ES Datasheet LITIX™ Power H-Bridge DC-DC controller .
The TLD5191ES is a synchronous MOSFET H-Bridge DC-DC controller with built-in protection features.

TLD5191ES Features

* Single inductor high power buck-boost controller
* Switching frequency range from 200 kHz to 700 kHz
* Maximum efficiency in every condition (up to 96%)
* Constant current (LED) and constant voltage regulation
* EMC optimized device: spread spectrum always a

TLD5191ES Applications

* Especially designed for driving high power LEDs in automotive applications
* Automotive exterior lighting: full LED headlamp assemblies (low beam, high beam, matrix beam, pixel light)
* Voltage pre-regulator for rear lamp assemblies
* General purpose DC-DC for const

📥 Download Datasheet

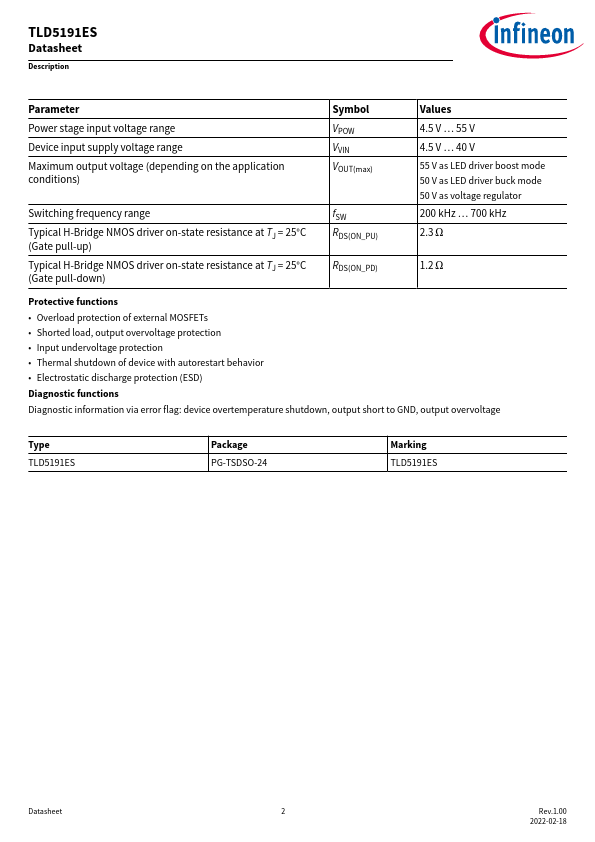

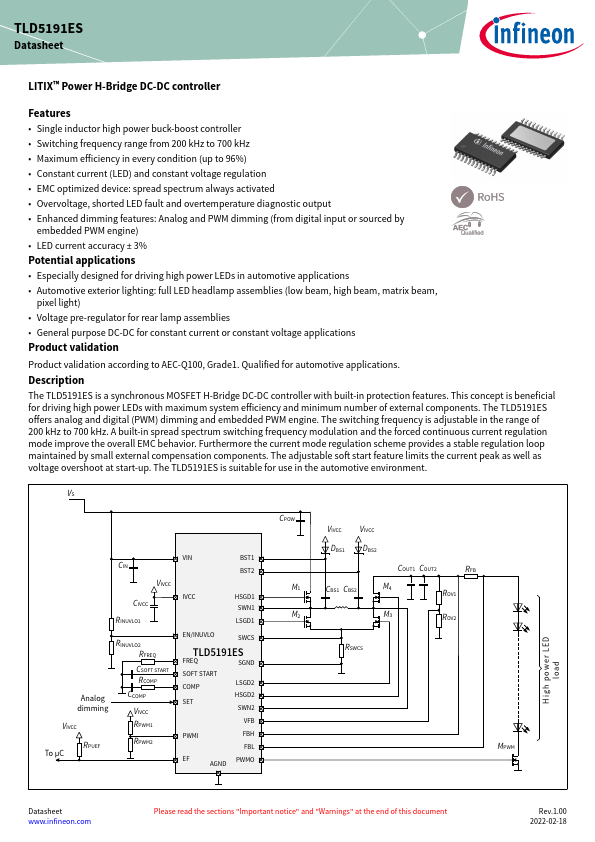

Preview of TLD5191ES PDF

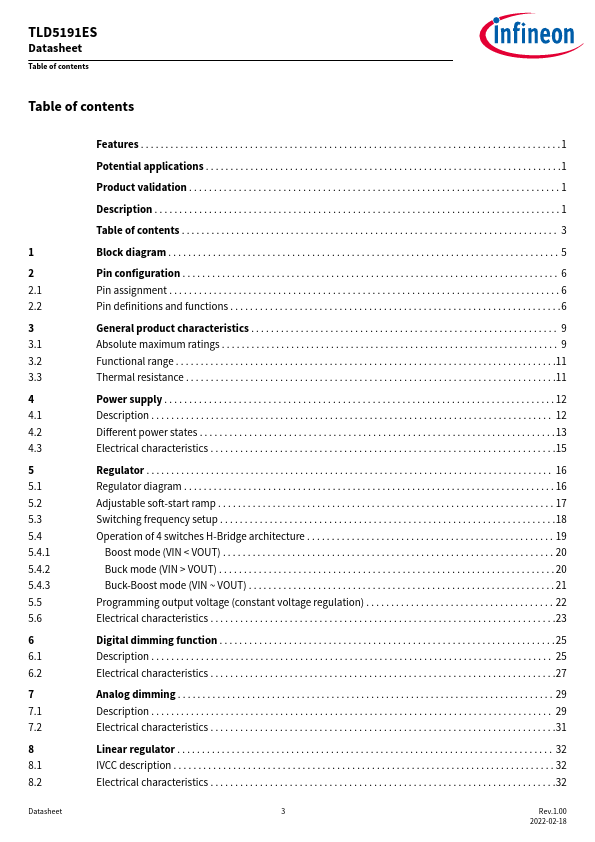

datasheet Preview Page 2 datasheet Preview Page 3
