TLD1124, TLD1124EL - Basic LED Driver

Name: TLD1124
SKU: TLD1124-1578247

Infineon

The TLD1124 by Infineon is a Basic LED Driver. Below is the official datasheet preview.

Datasheet Details

Part number	TLD1124, TLD1124EL
Manufacturer	Infineon
File Size	515.64 KB
Description	Basic LED Driver
Datasheet	TLD1124EL_Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: TLD1124, TLD1124EL. Please refer to the document for exact specifications by model.

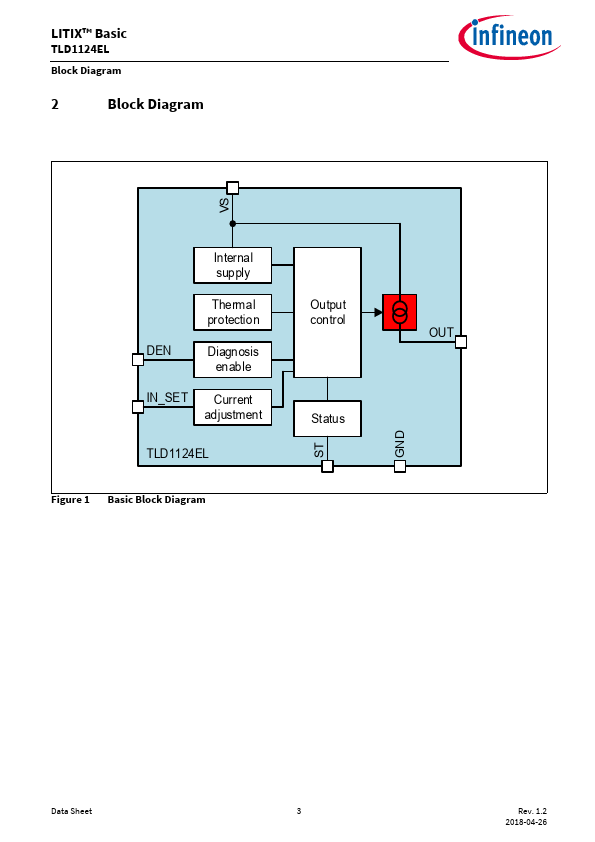

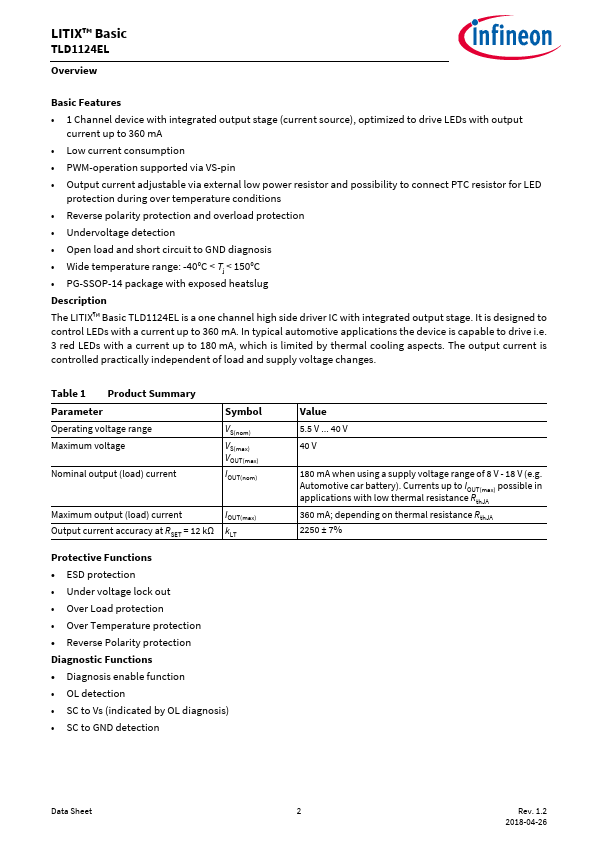

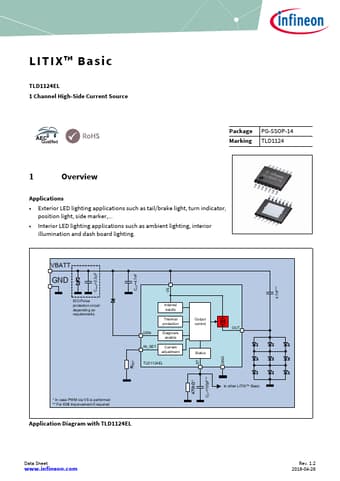

Additional preview pages of the TLD1124 datasheet.

The LITIX™ Basic TLD1124EL is a one channel high side driver IC with integrated output stage.

1 Channel device with integrated output stage (current source), optimized to drive LEDs with output current up to 360 mA.
Low current consumption.
PWM-operation supported via VS-pin.
Output current adjustable via external low power resistor and possibility to connect PTC resistor for LED protection during over temperature conditions.
Reverse polarity protection and overload protection.
Undervoltage detection.
Open load and short cir.
