Datasheet Details
Part number:
S26HS04GT, S26HS02GT
Manufacturer:
File Size:
207.94 KB
Description:
4gb flash.
Note:
This datasheet PDF includes multiple part numbers: S26HS04GT, S26HS02GT.
Please refer to the document for exact specifications by model.
S26HS04GT, S26HS02GT, 4Gb Flash
2 Interface overview

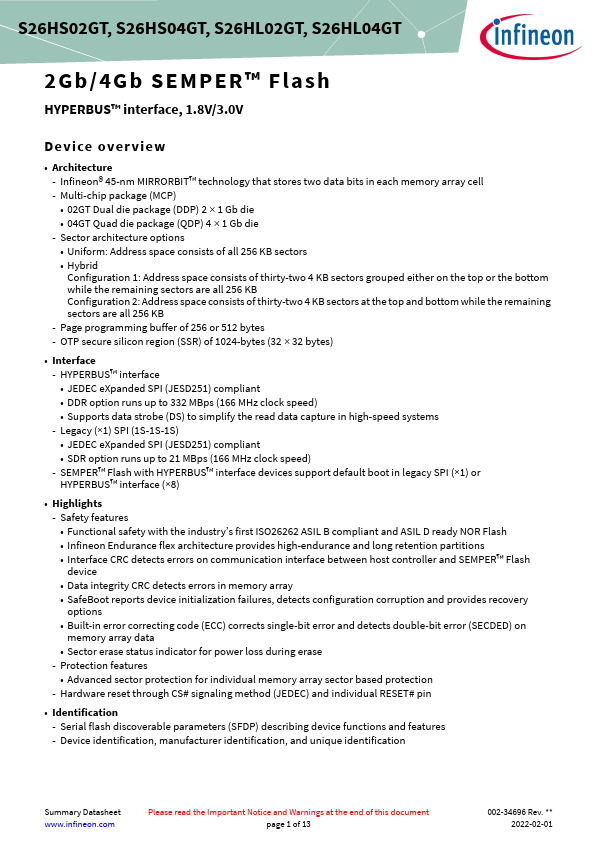

S26HS02GT, S26HS04GT, S26HL02GT, S26HL04GT 2Gb/4Gb SEMPER™ Flash HYPERBUS™ interface, 1.8V/3.0V Device overview Architecture - Infineon® 45-nm MIRRORBIT™ technology that stores two data bits in each memory array cell - Multi-chip package (MCP) 02GT Dual die package (DDP) 2 1 Gb die 04GT Quad die package (QDP) 4 1 Gb die - Sector architecture options Uniform: Address space consists of all 256 KB sectors Hybrid Configuration 1: Address space co
S26HS04GT Features
* Functional safety with the industry’s first ISO26262 ASIL B compliant and ASIL D ready NOR Flash
* Infineon Endurance flex architecture provides high-endurance and long retention partitions
* Interface CRC detects errors on communication interface between host controller an
