ITS4200S-SJ-D - Smart High-Side NMOS-Power Switch

Description

The ITS4200S-SJ-D is a protected 200m Ω single channel Smart High-Side NMOS-Power Switch in a PG-DSO-8 package with charge pump, CMOS compatible input and diagnostic feedback.

Features

  • CMOS compatible input.
  • Switching all types of resistive, inductive and capacitive loads.
  • Fast demagnetization of inductive loads.
  • Very low standby current.
  • Optimized electromagnetic compatibility (EMC).
  • Open drain diagnostic output for overtemperature and short circuit.
  • Open load detection in OFF-state with external resistor.
  • Overload protection.
  • Current limitation.
  • Short circuit protection.
  • Therm.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ITSN20015P2 RF Power LDMOS FET Innogration
ITSV33N Color TFT LCD IBM
ITSV50D2 LCD IBM
ITSV50E LCD IBM
ITSV51X SVGA Color TFT LCD IBM

Other Datasheets by Infineon

Part Number Description
ITS4200S-ME-N Smart High-Side NMOS-Power Switch
ITS4200S-ME-O Smart High-Side NMOS-Power Switch
ITS4200S-ME-P Smart High-Side NMOS-Power Switch
ITS42008-SB-D Smart Octal High-Side NMOS-Power Switch
ITS428L2 Smart High-Side Power Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

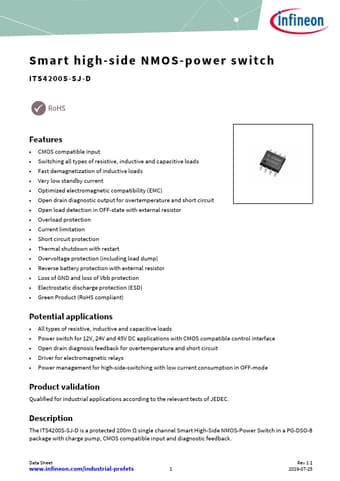

Smart high-side NMOS-power switch ITS4200S-SJ-D Features • CMOS compatible input • Switching all types of resistive, inductive and capacitive loads • Fast demagnetization of inductive loads • Very low standby current • Optimized electromagnetic compatibility (EMC) • Open drain diagnostic output for overtemperature and short circuit • Open load detection in OFF-state with external resistor • Overload protection • Current limitation • Short circuit protection • Thermal shutdown with restart • Overvoltage protection (including load dump) • Reverse battery protection with external resistor • Loss of GND and loss of Vbb protection • Electrostatic discharge protection (ESD) • Green Product (RoHS compliant) Potential applications • All types of resistive, inductive and capacitive loads • Power s
