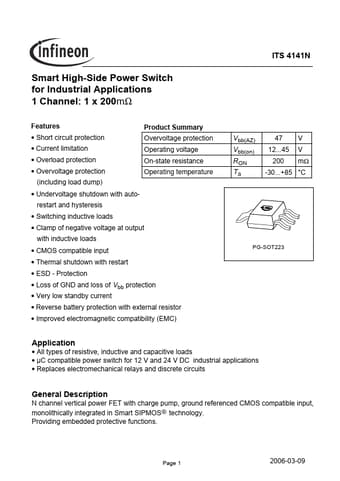

Description
N channel vertical power FET with charge pump, ground referenced CMOS compatible input,
monolithically integrated in Smart SIPMOS technology.Providing embedded protective functions.Page 1
2006-03-09
ITS 4141N
Block Diagram
3 IN Rin
Voltage source
VLogic Voltage sensor
Overvoltage protection
Current Gate limit protection
+ Vbb 4
Charge pump Level shifter
Rectifier
Limit for unclamped ind.loads
OUT
Temperature sensor
1
ESD Logic
Load
GND
2
Signal GND
miniPROFET®
Load GND
Pin
Features
- Short circuit protection.
- Current limitation.
- Overload protection.
- Overvoltage protection
(including load dump)
Product Summary Overvoltage protection Operating voltage On-state resistance Operating temperature.
- Undervoltage shutdown with autorestart and hysteresis.
- Switching inductive loads.
- Clamp of negative voltage at output
with inductive loads.
- CMOS compatible input.
- Thermal shutdown with restart.
