IPT012N06N - 60V MOSFET

Infineon

General Description

Key Features

100% avalanche tested.
Superior thermal resistance.
N-channel.
Qualified according to JEDEC1) for target.

📥 Download Datasheet

IPT012N06N 60v mosfet by Infineon - Datasheet Preview

Datasheet Details

Part number	IPT012N06N
Manufacturer	Infineon
File Size	634.20 KB
Description	60V MOSFET
Datasheet	IPT012N06N Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
IPT2601	USB Dedicated Fast-Charging Port Controller	FUMAN
IPT2602	USB fast charging port controller	ChipSourceTek

Other Datasheets by Infineon

Part Number	Description
IPT012N08N5	80V MOSFET
IPT010N08NM5	80V MOSFET
IPT013N08NM5LF	80V MOSFET
IPT014N08NM5	80V MOSFET
IPT015N10N5	MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

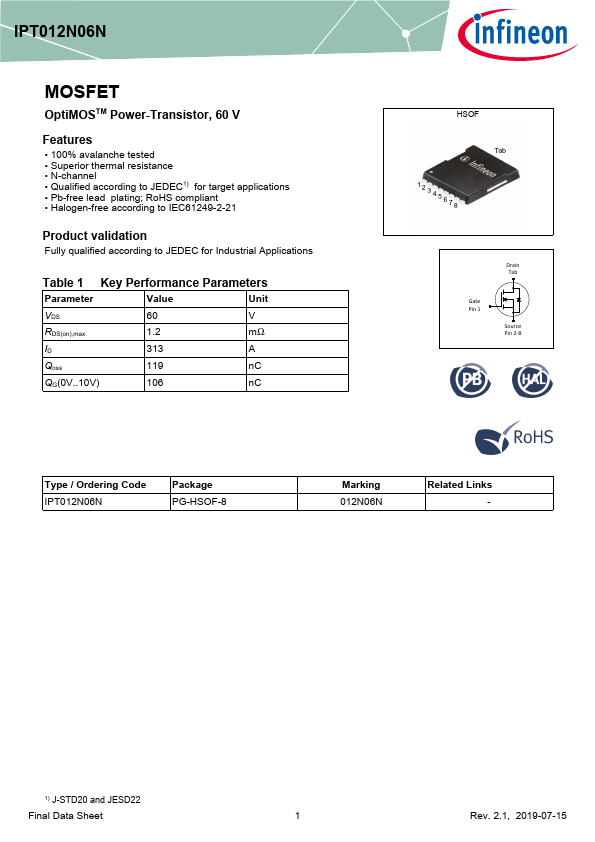

IPT012N06N MOSFET OptiMOSTMPower-Transistor,60V Features •100%avalanchetested •Superiorthermalresistance •N-channel •QualifiedaccordingtoJEDEC1)fortargetapplications •Pb-freeleadplating;RoHScompliant •Halogen-freeaccordingtoIEC61249-2-21 Productvalidation FullyqualifiedaccordingtoJEDECforIndustrialApplications Table1KeyPerformanceParameters Parameter Value Unit VDS 60 V RDS(on),max 1.2 mΩ ID 313 A Qoss 119 nC QG(0V..10V) 106 nC HSOF Tab 12345 678 Drain Tab Gate Pin 1 Source Pin 2-8 Type/OrderingCode IPT012N06N Package PG-HSOF-8 Marking 012N06N RelatedLinks - 1) J-STD20 and JESD22 Final Data Sheet 1 Rev.2.1,2019-07-15 OptiMOSTMPower-Transistor,60V IPT012N06N TableofContents Description . . . . . . . . .
