IPP040N06N3, IPP040N06N3G Power Transistor

IPP040N06N3 Description

IPP040N06N3 G MOSFET OptiMOSª3 Power-Transistor, 60 V .

IPP040N06N3 Features

* for sync. rectification, drives and dc/dc SMPS
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* Avalanche rated

IPP040N06N3 Applications

* Pb-free plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 4 mΩ ID 130 A TO-220-3 tab Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Type / Ordering Code IPP040N06N3 G Packa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPP040N06N3, IPP040N06N3G. Please refer to the document for exact specifications by model.

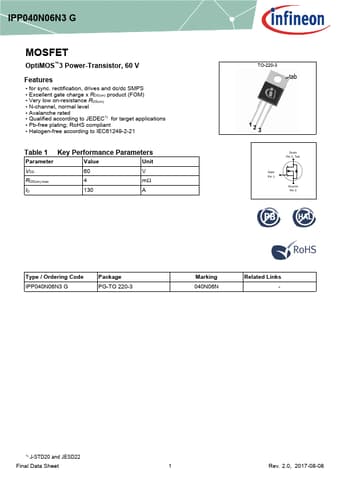

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IPP040N06N3, IPP040N06N3G
Manufacturer
Infineon ↗
File Size
1.57 MB
Datasheet
IPP040N06N3G_InfineonTechnologiesAG.pdf
Description
Power Transistor
Note
This datasheet PDF includes multiple part numbers: IPP040N06N3, IPP040N06N3G.
Please refer to the document for exact specifications by model.
