IPB80N08S4-06 - Power-Transistor

Infineon

📥 Download Datasheet

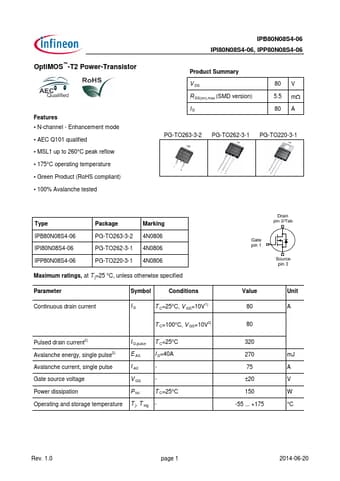

IPB80N08S4-06 Datasheet Preview — Preview of IPB80N08S4-06 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPB80N08S4-06
Manufacturer	Infineon ↗
File Size	226.99 KB
Description	Power-Transistor
Datasheet	IPB80N08S4-06-Infineon.pdf

IPB80N08S4-06 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB80N08S4-06 IPI80N08S4-06, IPP80N08S4-06 Product Summary V DS R DS(on),max (SMD version) ID 80 V 5.5 mW 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N08S4-06 IPI80N08S4-06 IPP80N08S4-06 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0806 4N0806 4N0806 M.
