IPB80N04S4-04 - Power-Transistor

Infineon

📥 Download Datasheet

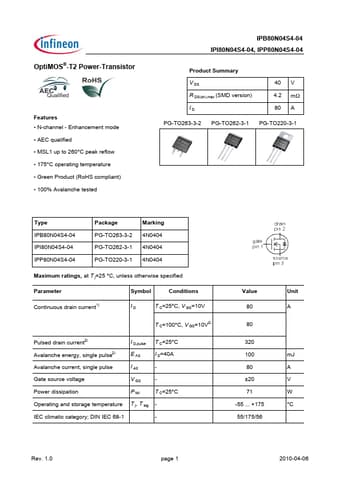

IPB80N04S4-04 Datasheet Preview — Preview of IPB80N04S4-04 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPB80N04S4-04
Manufacturer	Infineon
File Size	157.38 KB
Description	Power-Transistor
Datasheet	IPB80N04S4-04-Infineon.pdf

IPB80N04S4-04 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB80N04S4-04 IPI80N04S4-04, IPP80N04S4-04 Product Summary V DS R DS(on),max (SMD version) ID 40 V 4.2 mΩ 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N04S4-04 IPI80N04S4-04 IPP80N04S4-04 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0404 4N0404 4N0404 Maximu.
