IPB80N06S4L-05 - Power-Transistor

Infineon

📥 Download Datasheet

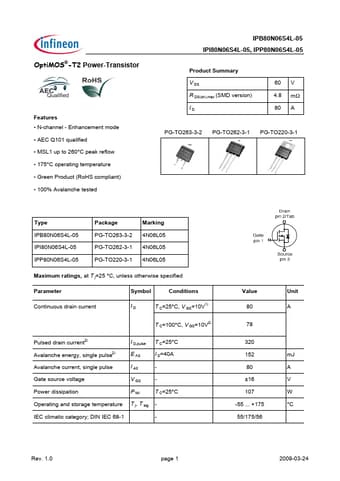

IPB80N06S4L-05 Datasheet Preview — Preview of IPB80N06S4L-05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPB80N06S4L-05
Manufacturer	Infineon
File Size	166.96 KB
Description	Power-Transistor
Datasheet	IPB80N06S4L-05-Infineon.pdf

IPB80N06S4L-05 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB80N06S4L-05 IPI80N06S4L-05, IPP80N06S4L-05 Product Summary V DS R DS(on),max (SMD version) ID 60 V 4.8 mΩ 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N06S4L-05 IPI80N06S4L-05 IPP80N06S4L-05 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N06L05 4N06L05 4.
