IPB80N06S2-09 - Power-Transistor

Name: IPB80N06S2-09
SKU: IPB80N06S2-09-855597

Infineon Technologies

The IPB80N06S2-09 by Infineon Technologies is a Power-Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	IPB80N06S2-09
Manufacturer	Infineon Technologies
File Size	152.89 KB
Description	Power-Transistor
Datasheet	IPB80N06S2-09-InfineonTechnologies.pdf

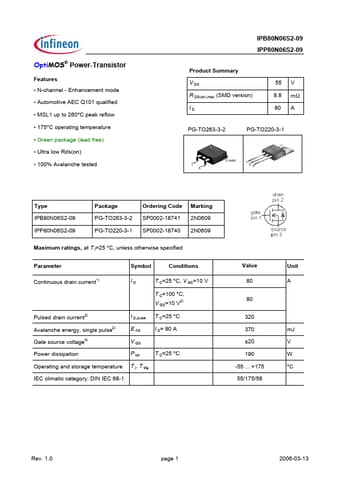

Additional preview pages of the IPB80N06S2-09 datasheet.

and charts stated herein.

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPB80N06S2-09 IPP80N06S2-09 Product Summary V DS R DS(on),max (SMD version) ID 55 V 8.8 mΩ 80 A PG-TO263-3-2 PG-TO220-3-1 Type IPB80N06S2-09 IPP80N06S2-09 Package PG-TO263-3-2 PG-TO220-3-1 Ordering Code Marking SP0002-18741 2N0609 SP0002-18.
