IMZA120R030M1H - 1200V SiC Trench MOSFET

Description

1 drain 2 source 3 Kelvin sense contact 4 gate Note: the source and sense pins are not exchangeable, their exchange might lead to malfunction (only for 4pin, TO263-7L ) Copyright © Infineon Techn Type IMZA120R030M1H Package PG-TO247-4-U02 Marking 12M1H030

Features

  • VDSS = 1200 V at Tvj = 25°C.
  • IDDC = 70 A at TC = 25°C.
  • RDS(on) = 30 mΩ at VGS = 18 V, Tvj = 25°C.
  • Very low switching losses.
  • Short circuit withstand time 3 µs.
  • Benchmark gate threshold voltage, VGS(th) = 4.2 V.
  • Robust against parasitic turn on, 0 V turn-off gate voltage can be applied.
  • Robust body diode for hard commutation.
  • . XT interconnection technology for best-in-class thermal performance TO-247-4.
  • 4P.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IMZ1A General purpose transistor Rohm
IMZ2A Dual Transistor Rohm
IMZ2A DUAL TRANSISTORS UTC
IMZ4 General purpose transistor Rohm
IMZ88 GENERAL PURPOSE DUAL TRANSISTOR UTC

Other Datasheets by Infineon

Part Number Description
IMZA120R034M2H 1200V SiC MOSFET
IMZA120R014M1H 1200V SiC Trench MOSFET
IMZA120R017M2H 1200V SiC MOSFET
IMZA120R020M1H 1200V SiC MOSFET
IMZA120R022M2H 1200V SiC MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

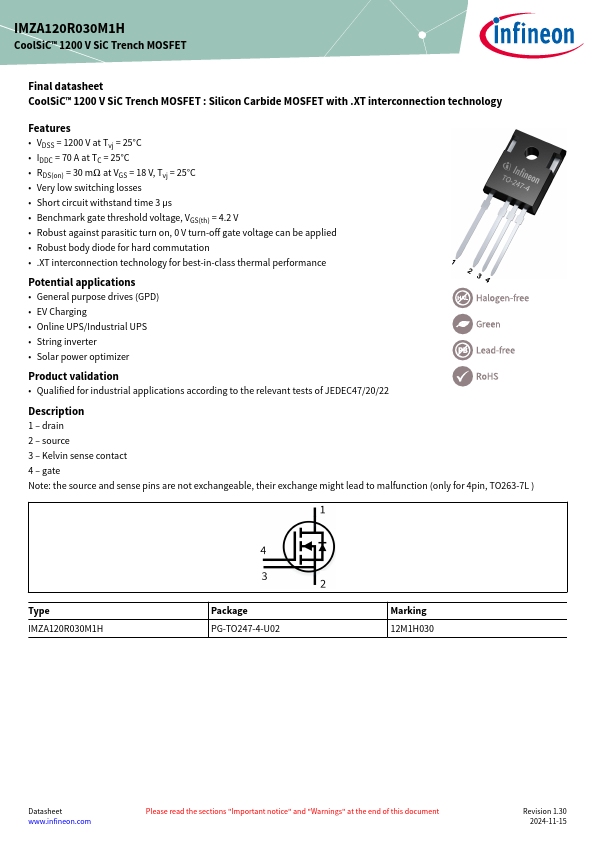

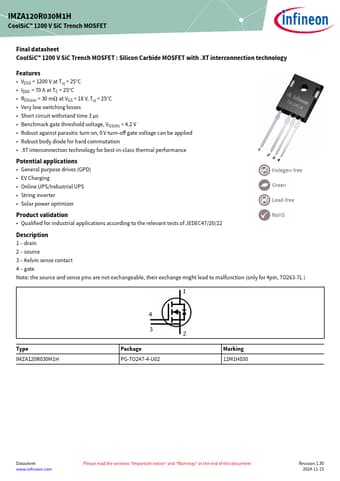

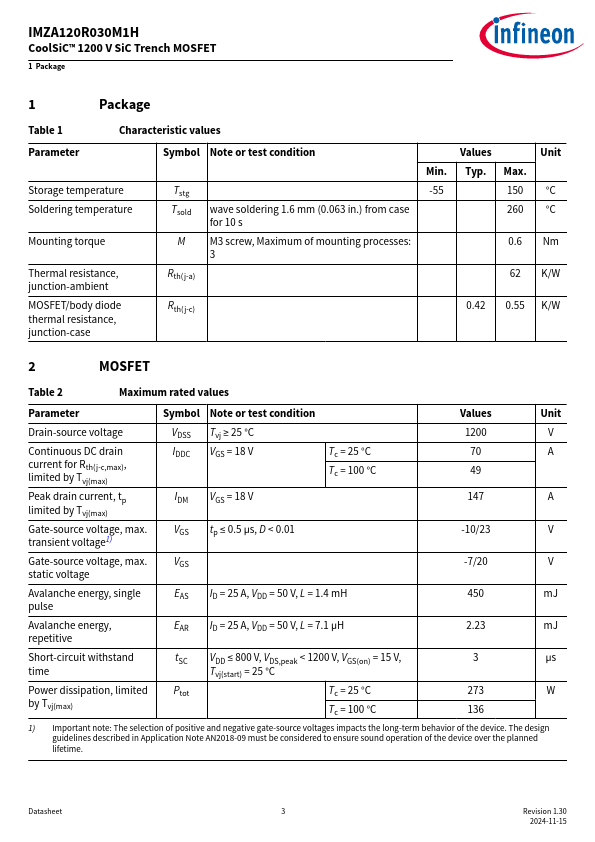

IMZA120R030M1H CoolSiC™ 1200 V SiC Trench MOSFET Final datasheet CoolSiC™ 1200 V SiC Trench MOSFET : Silicon Carbide MOSFET with .XT interconnection technology Features • VDSS = 1200 V at Tvj = 25°C • IDDC = 70 A at TC = 25°C • RDS(on) = 30 mΩ at VGS = 18 V, Tvj = 25°C • Very low switching losses • Short circuit withstand time 3 µs • Benchmark gate threshold voltage, VGS(th) = 4.2 V • Robust against parasitic turn on, 0 V turn-off gate voltage can be applied • Robust body diode for hard commutation • .
Published: |
