IMT65R020M2H - 650V SiC MOSFET

Infineon

The IMT65R020M2H by Infineon is a 650V SiC MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

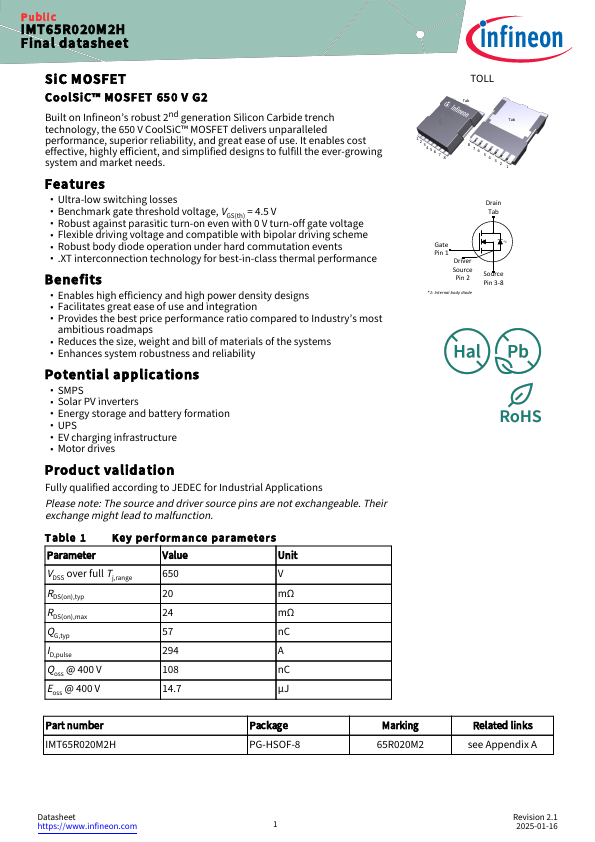

IMT65R020M2H 650V SiC MOSFET by Infineon - Datasheet Preview — Official preview page of the IMT65R020M2H 650V SiC MOSFET datasheet (Infineon).

Datasheet Details

Part number	IMT65R020M2H
Manufacturer	Infineon
File Size	1.33 MB
Description	650V SiC MOSFET
Datasheet	IMT65R020M2H-Infineon.pdf
Additional preview pages of the IMT65R020M2H datasheet.

IMT65R020M2H Product details

Description

1 Maximum ratings 3 Thermal characteristics .

Features

Ultra‑low switching losses.
Benchmark gate threshold voltage, VGS(th) = 4.5 V.
Robust against parasitic turn‑on even with 0 V turn‑off gate voltage.
Flexible driving voltage and compatible with bipolar driving scheme.
Robust body diode operation under hard commutation events.
. XT interconnection technology for best‑in‑class thermal performance Benefits.
Enables high efficiency and high power density designs.
Facilitates gre.
