IMBG65R010M2H - 650V SiC MOSFET

Infineon

📥 Download Datasheet

IMBG65R010M2H Datasheet Preview — Preview of IMBG65R010M2H PDF

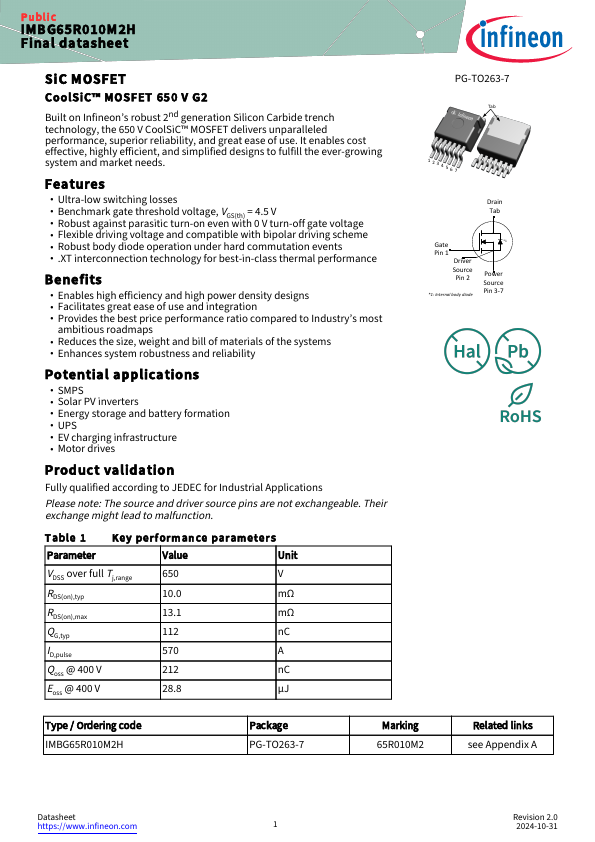

datasheet Preview Page 2

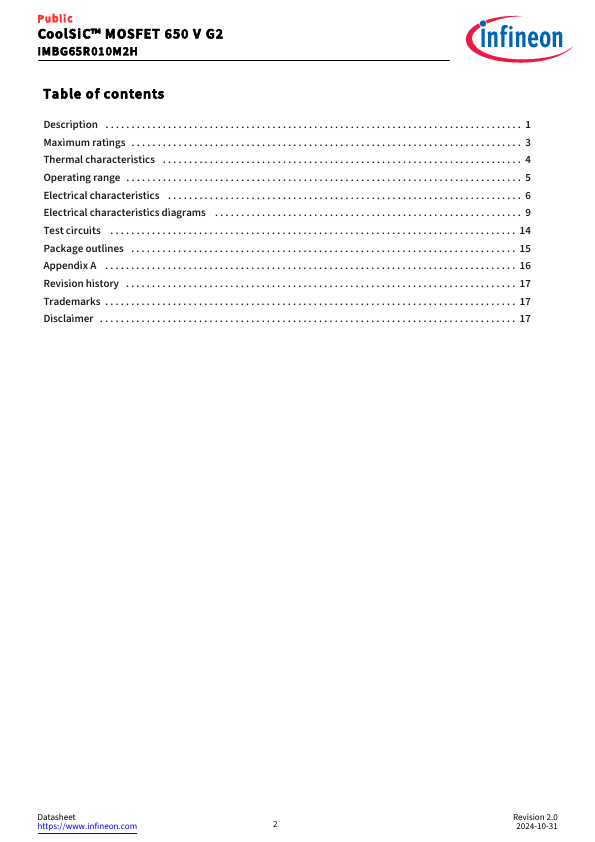

datasheet Preview Page 3

Datasheet Details

Part number	IMBG65R010M2H
Manufacturer	Infineon
File Size	1.37 MB
Description	650V SiC MOSFET
Datasheet	IMBG65R010M2H-Infineon.pdf

IMBG65R010M2H Product details

Description

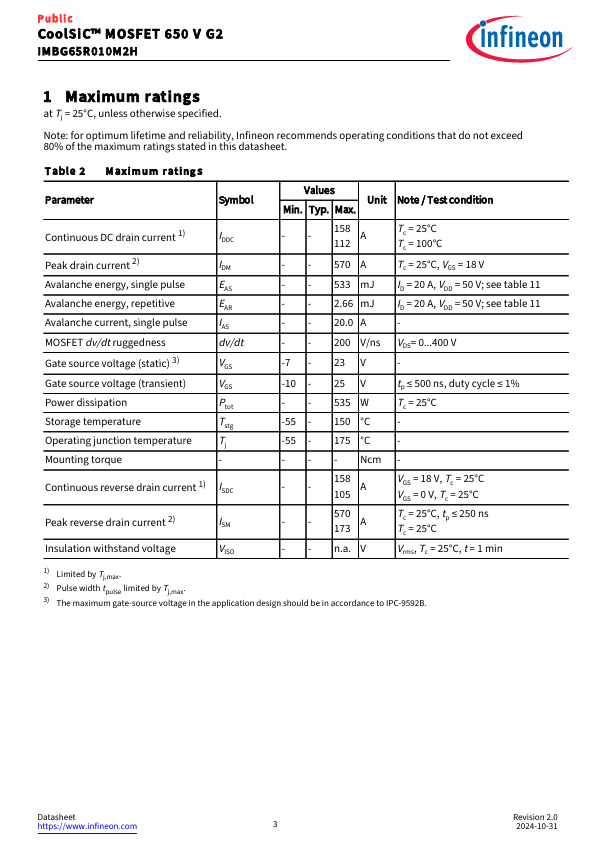

1 Maximum ratings 3 Thermal characteristics .

Features

Ultra‑low switching losses.
Benchmark gate threshold voltage, VGS(th) = 4.5 V.
Robust against parasitic turn‑on even with 0 V turn‑off gate voltage.
Flexible driving voltage and compatible with bipolar driving scheme.
Robust body diode operation under hard commutation events.
. XT interconnection technology for best‑in‑class thermal performance Benefits.
Enables high efficiency and high power density designs.
Facilitates gre.
