IM72D128VV01 - Ultra-low power digital PDM XENSIV MEMS microphone

Infineon

📥 Download Datasheet

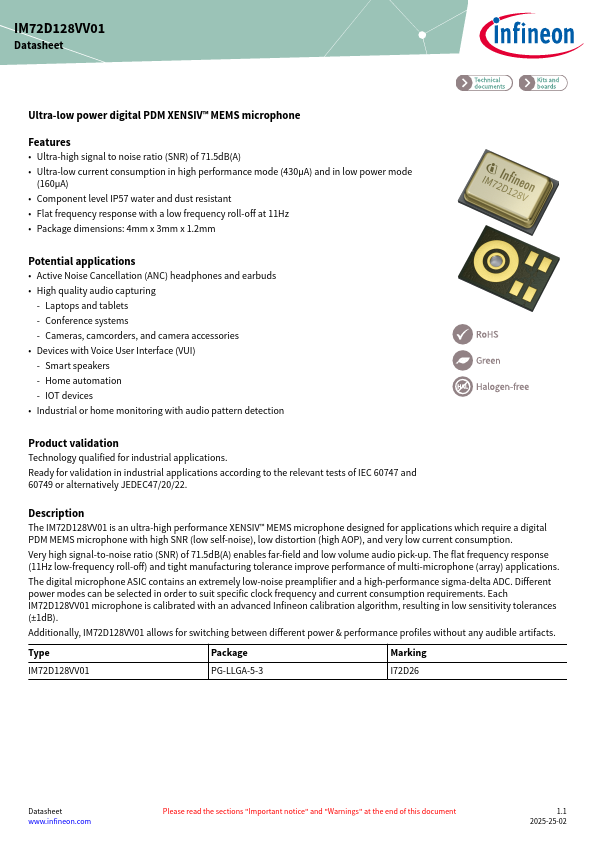

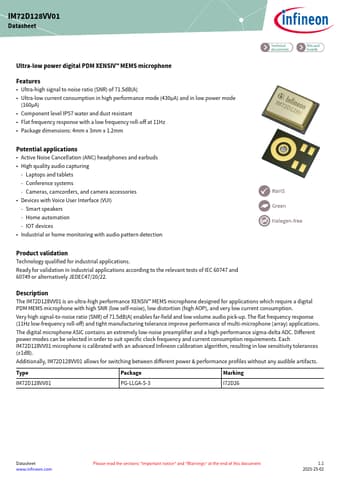

IM72D128VV01 Datasheet Preview — Preview of IM72D128VV01 PDF

Datasheet Details

Part number	IM72D128VV01
Manufacturer	Infineon
File Size	1.38 MB
Description	Ultra-low power digital PDM XENSIV MEMS microphone
Datasheet	IM72D128VV01-Infineon.pdf

IM72D128VV01 Product details

Description

The IM72D128VV01 is an ultra-high performance XENSIV™ MEMS microphone designed for applications which require a digital PDM MEMS microphone with high SNR (low self-noise), low distortion (high AOP), and very low current consumption.

Features

Ultra-high signal to noise ratio (SNR) of 71.5dB(A).
Ultra-low current consumption in high performance mode (430µA) and in low power mode (160µA).
Component level IP57 water and dust resistant.
Flat frequency response with a low frequency roll-off at 11Hz.
Package dimensions: 4mm x 3mm x 1.2mm Potential.
