IM72D128V01 - IP57 dust and water resistant digital PDM MEMS microphone

Infineon

📥 Download Datasheet

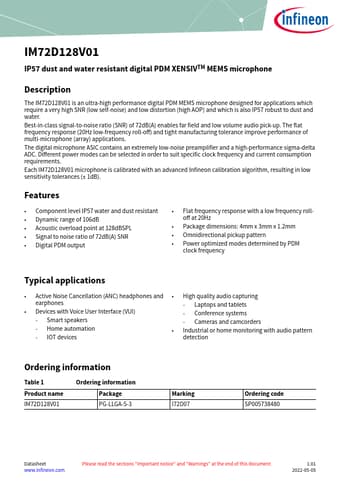

IM72D128V01 Datasheet Preview — Preview of IM72D128V01 PDF

Datasheet Details

Part number	IM72D128V01
Manufacturer	Infineon
File Size	849.67 KB
Description	IP57 dust and water resistant digital PDM MEMS microphone
Datasheet	IM72D128V01-Infineon.pdf

IM72D128V01 Product details

Description

The IM72D128V01 is an ultra-high performance digital PDM MEMS microphone designed for applications which require a very high SNR (low self-noise) and low distortion (high AOP) and which is also IP57 robust to dust and water.

Features

Component level IP57 water and dust resistant.
Dynamic range of 106dB.
Acoustic overload point at 128dBSPL.
Signal to noise ratio of 72dB(A) SNR.
Digital PDM output.
Flat frequency response with a low frequency rolloff at 20Hz.
Package dimensions: 4mm x 3mm x 1.2mm.
Omnidirectional pickup pattern.
Power optimized modes determined by PDM clock frequency Typical.
