IM69D128SV01 - Ultra-low power digital PDM XENSIV MEMS microphone

Infineon

📥 Download Datasheet

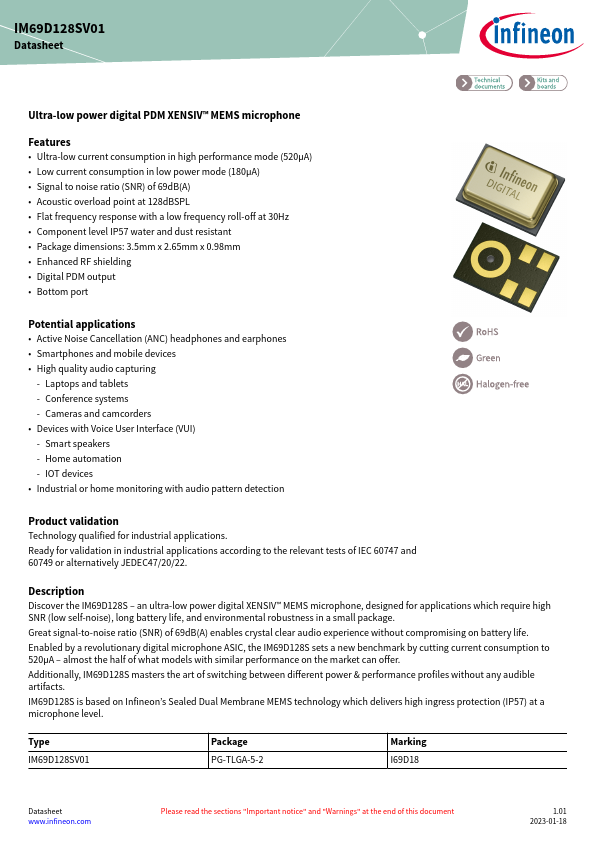

IM69D128SV01 Datasheet Preview — Preview of IM69D128SV01 PDF

Datasheet Details

Part number	IM69D128SV01
Manufacturer	Infineon
File Size	1.31 MB
Description	Ultra-low power digital PDM XENSIV MEMS microphone
Datasheet	IM69D128SV01-Infineon.pdf

IM69D128SV01 Product details

Description

Discover the IM69D128S an ultra-low power digital XENSIV™ MEMS microphone, designed for applications which require high SNR (low self-noise), long battery life, and environmental robustness in a small package. almost the half of wh

Features

Ultra-low current consumption in high performance mode (520µA).
Low current consumption in low power mode (180µA).
Signal to noise ratio (SNR) of 69dB(A).
Acoustic overload point at 128dBSPL.
Flat frequency response with a low frequency roll-off at 30Hz.
Component level IP57 water and dust resistant.
Package dimensions: 3.5mm x 2.65mm x 0.98mm.
Enhanced RF shielding.
Digital PDM output.
Bottom port https:.
