IM63D135A - high performance digital MEMS microphone

Name: IM63D135A
SKU: IM63D135A-1545598

Infineon

📥 Download Datasheet

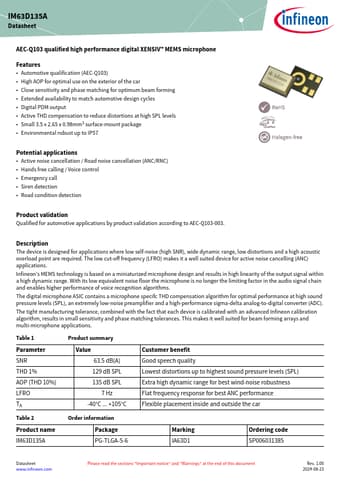

IM63D135A Datasheet Preview — Preview of IM63D135A PDF

Datasheet Details

Part number	IM63D135A
Manufacturer	Infineon
File Size	942.88 KB
Description	high performance digital MEMS microphone
Datasheet	IM63D135A-Infineon.pdf

IM63D135A Product details

Description

The device is designed for applications where low self-noise (high SNR), wide dynamic range, low distortions and a high acoustic overload point are required.

Features

Automotive qualification (AEC-Q103).
High AOP for optimal use on the exterior of the car.
Close sensitivity and phase matching for optimum beam forming.
Extended availability to match automotive design cycles.
Digital PDM output.
Active THD compensation to reduce distortions at high SPL levels.
Small 3.5 x 2.65 x 0.98mm3 surface-mount package.
Environmental robust up to IP57 Potential.
