IKZ50N65NH5 IGBT

IKZ50N65NH5 Description

IGBT High speed 5 IGBT in TRENCHSTOPTM 5 technology copacked with RAPID 2 fast and soft antiparallel diode IKZ50N65NH5 650V DuoPack IGBT and diode Hig.

IKZ50N65NH5 Features

* High speed H5 technology offering
* Ultra low loss switching thanks to Kelvin emitter pin in combination with TRENCHSTOPTM 5
* Best-in-class efficiency in hard switching and resonant topologies
* Plug and play replacement of previous generation IGBTs
* 650V breakdown

IKZ50N65NH5 Applications

* Pb-free lead plating; RoHS compliant
* Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ Applications
* Uninterruptible power supplies
* Welding converters
* Mid to high range switching frequency converters
* Solar string inv

📥 Download Datasheet

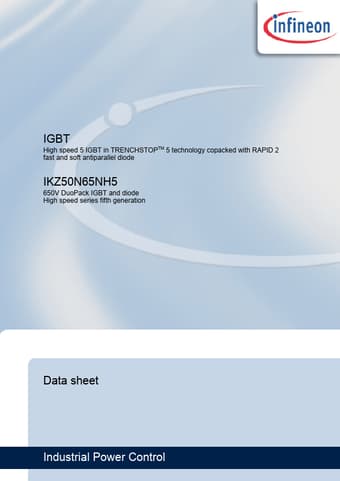

Preview of IKZ50N65NH5 PDF
