IKY40N120CH3 - IGBT

Description

.

.

.

.

Features

  • High speed H3 technology offers:.
  • Ultra-low loss switching losses thanks to Kelvin emitter pin package in combination with High speed H3 technology.
  • High efficiency in hard switching and resonant topologies.
  • 10µsec short circuit withstand time at Tvj=175°C.
  • Easy paralleling capability due to positive temperature coefficient in VCE(sat).
  • Low EMI.
  • Low Gate Charge QG.
  • Very soft, fast recovery full current anti-parallel diode.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Infineon

Part Number Description
IKY40N120CS6 High speed soft switching IGBT
IKY100N120CH7 High speed 1200V IGBT
IKY120N120CH7 High speed 1200V IGBT
IKY120N65EH7 IGBT
IKY150N65EH7 High speed and low saturation voltage 650V IGBT7

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

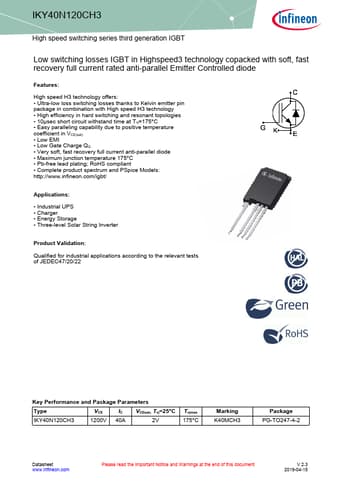

IKY40N120CH3 HighspeedswitchingseriesthirdgenerationIGBT LowswitchinglossesIGBTinHighspeed3technologycopackedwithsoft,fast recoveryfullcurrentratedanti-parallelEmitterControlleddiode  Features: HighspeedH3technologyoffers: •Ultra-lowlossswitchinglossesthankstoKelvinemitterpin packageincombinationwithHighspeedH3technology •Highefficiencyinhardswitchingandresonanttopologies •10µsecshortcircuitwithstandtimeatTvj=175°C •Easyparallelingcapabilityduetopositivetemperature coefficientinVCE(sat) •LowEMI •LowGateChargeQG •Verysoft,fastrecoveryfullcurrentanti-paralleldiode •Maximumjunctiontemperature175°C •Pb-freeleadplating;RoHScompliant •CompleteproductspectrumandPSpiceModels: http://www.infineon.
