IKW40N120CS7 - 1200V IGBT

Infineon

📥 Download Datasheet

IKW40N120CS7 Datasheet Preview — Preview of IKW40N120CS7 PDF

Datasheet Details

Part number	IKW40N120CS7
Manufacturer	Infineon
File Size	1.99 MB
Description	1200V IGBT
Datasheet	IKW40N120CS7-Infineon.pdf

IKW40N120CS7 Product details

Description

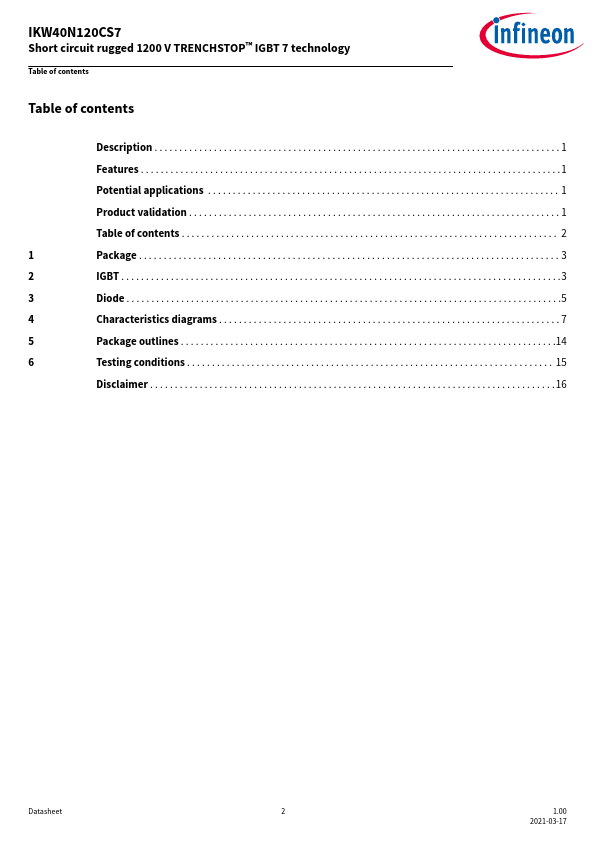

C Type IKW40N120CS7 G Package PG-TO247-3 E Marking K40MCS7 Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document 1.00 2021-03-17 IKW40N120CS7 Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology Table of contents Table of contents Description .

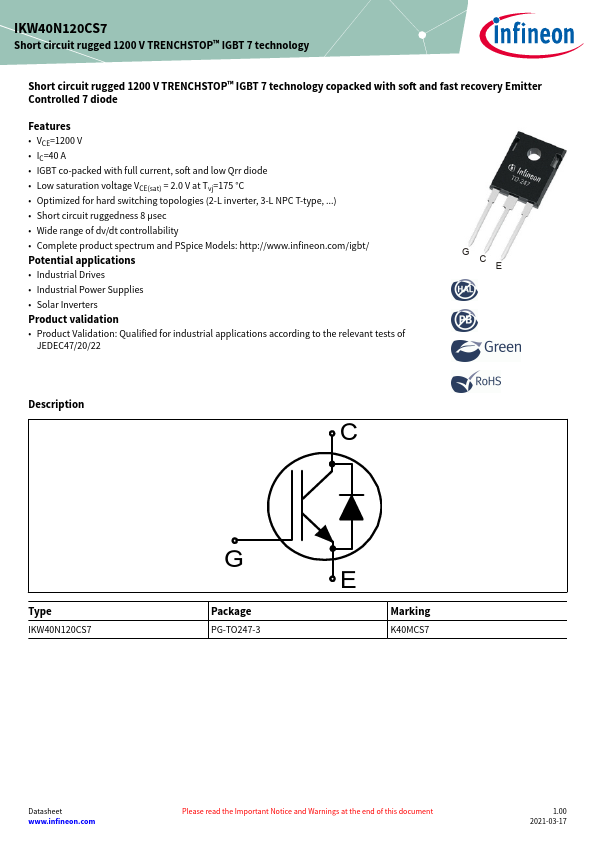

Features

VCE=1200 V.
IC=40 A.
IGBT co-packed with full current, soft and low Qrr diode.
Low saturation voltage VCE(sat) = 2.0 V at Tvj=175 °C.
Optimized for hard switching topologies (2-L inverter, 3-L NPC T-type, ).
Short circuit ruggedness 8 µsec.
Wide range of dv/dt controllability.
Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ Potential.
