ICL5102 PFC + Resonant Half-Bridge Controller

ICL5102 Description

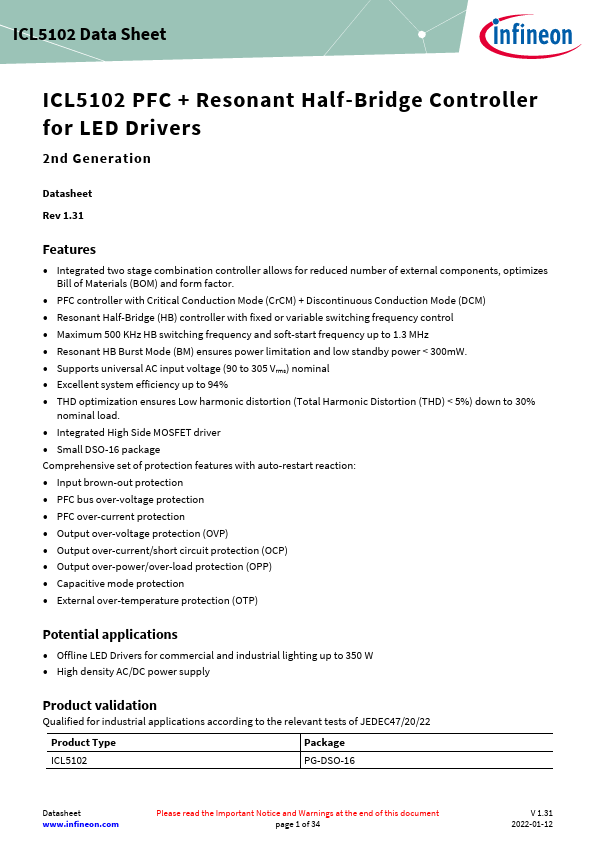

ICL5102 Data Sheet ICL5102 PFC + Resonant Half-Bridge Controller for LED Drivers 2nd Generation Datasheet Rev 1.31 .

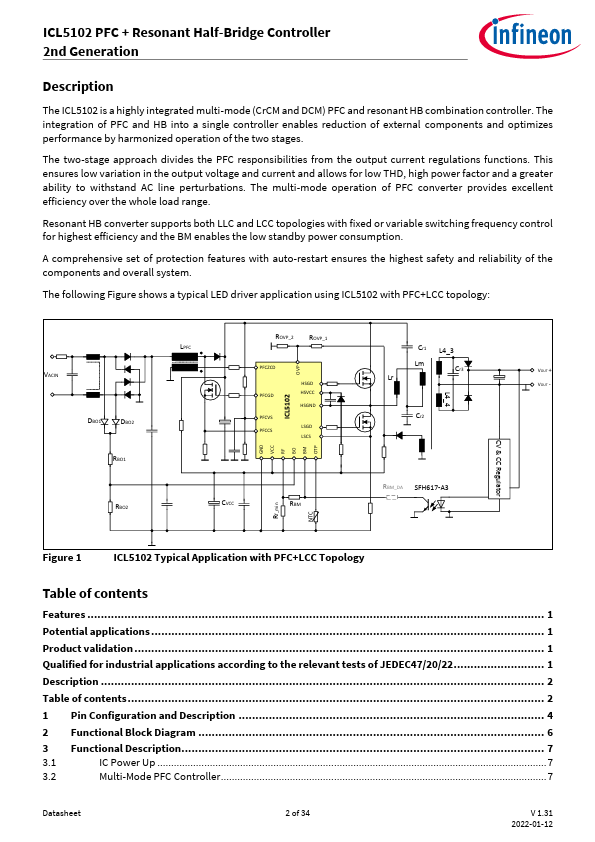

ROVP_2 ROVP_1 The ICL5102 is a highly integratLePFCd multi-mode (CrCM and DCM) PFC and resonant HBCr1comL4b_3ination controller.

ICL5102 Features

* Integrated two stage combination controller allows for reduced number of external components, optimizes Bill of Materials (BOM) and form factor.
* PFC controller with Critical Conduction Mode (CrCM) + Discontinuous Conduction Mode (DCM)
* Resonant Half-Bridge (HB) controlle

ICL5102 Applications

* Offline LED Drivers for commercial and industrial lighting up to 350 W
* High density AC/DC power supply Product validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22 Product Type ICL5102 Package PG-DSO-16 Datasheet www. infineon. com
