ICL232 Dual RS-232 Transmitter/Receiver

ICL232 Description

ICL232 +5V Powered, Dual RS-232 Transmitter/Receiver The ICL232 is a dual RS-232 transmitter/receiver interface circuit that meets all ElA RS-232C and.

ICL232 Features

* two onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The drivers feature true TTL/CMOS input compatibility, slew-rate-limited output, and 300Ω power-off source impedance. The receivers can handle up to +30V, and have a 3kΩ to 7kΩ input impedance. The r

ICL232 Applications

* Any system requiring RS-232 communications port - Computer - portable and mainframe - Peripheral - printers and terminals - Portable instrumentation - Modems

📥 Download Datasheet

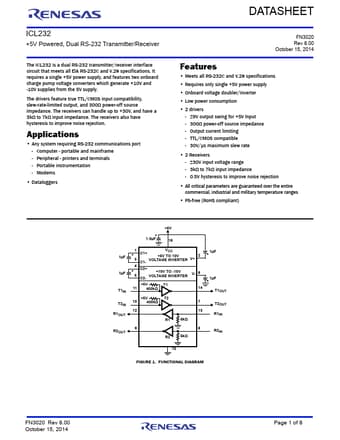

Preview of ICL232 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICL232
Manufacturer
Renesas ↗
File Size
443.68 KB
Datasheet
ICL232-Renesas.pdf
Description
Dual RS-232 Transmitter/Receiver
