H30R1353 IGBT

H30R1353 Description

Resonant Switching Series Reverse conducting IGBT with monolithic body diode IHW30N135R3 Data sheet Industrial Power Control IHW30N135R3 Resonant Sw.

H30R1353 Features

* Offers new higher breakdown voltage to 1350V for improved reliability
* Powerful monolithic body diode with low forward voltage designed for soft commutation only
* TRENCHSTOPTM technology offering: - very tight parameter distribution - high ruggedness, temperature stable

H30R1353 Applications

* Pb-free lead plating; RoHS compliant
* Halogen free (according to IEC 61249-2-21)
* Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ C G E Applications:
* Inductive cooking
* Inverterized microwave ovens
* Resonant convert

📥 Download Datasheet

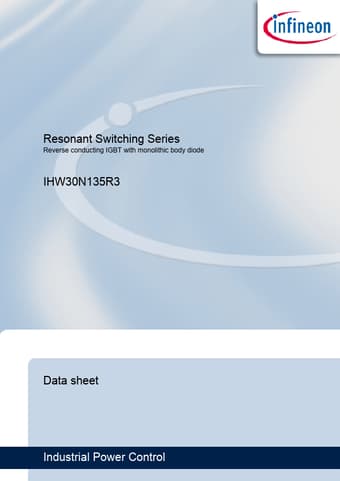

Preview of H30R1353 PDF
datasheet Preview Page 2 datasheet Preview Page 3
