H30R1202 Reverse Conducting IGBT

H30R1202 Description

IHW30N120R2 Soft Switching Series Reverse Conducting IGBT with monolithic body diode .

H30R1202 Features

* Powerful monolithic Body Diode with very low forward voltage
* Body diode clamps negative voltages

H30R1202 Applications

* offers : - very tight parameter distribution - high ruggedness, temperature stable behavior
* NPT technology offers easy parallel switching capability due to positive temperature coefficient in VCE(sat)
* Low EMI
* Qualified according to JEDEC1 for target applications

📥 Download Datasheet

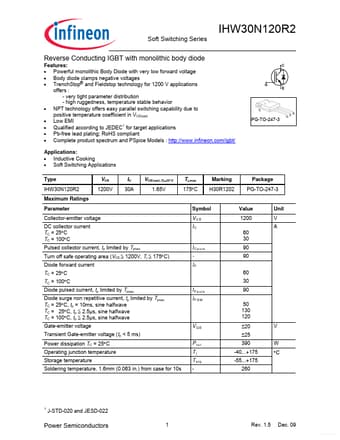

Preview of H30R1202 PDF
datasheet Preview Page 2 datasheet Preview Page 3
