FP100R07N3E4 - IGBT

Name: FP100R07N3E4
SKU: FP100R07N3E4-1439591

Infineon

📥 Download Datasheet

FP100R07N3E4 Datasheet Preview — Preview of FP100R07N3E4 PDF

Datasheet Details

Part number	FP100R07N3E4
Manufacturer	Infineon
File Size	541.99 KB
Description	IGBT
Datasheet	FP100R07N3E4-Infineon.pdf

FP100R07N3E4 Product details

Description

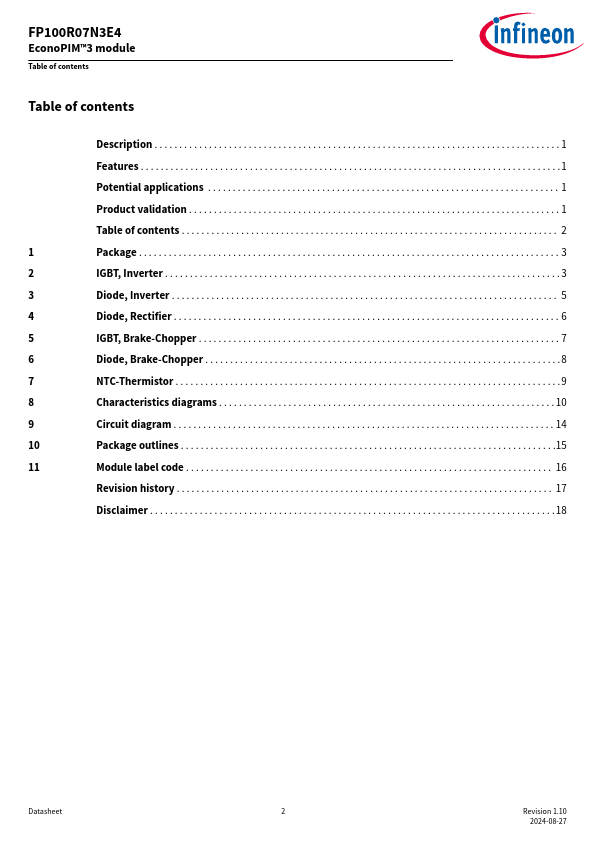

- Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2024-08-27 FP100R07N3E4 EconoPIM™3 module Table of contents Table of contents Description .

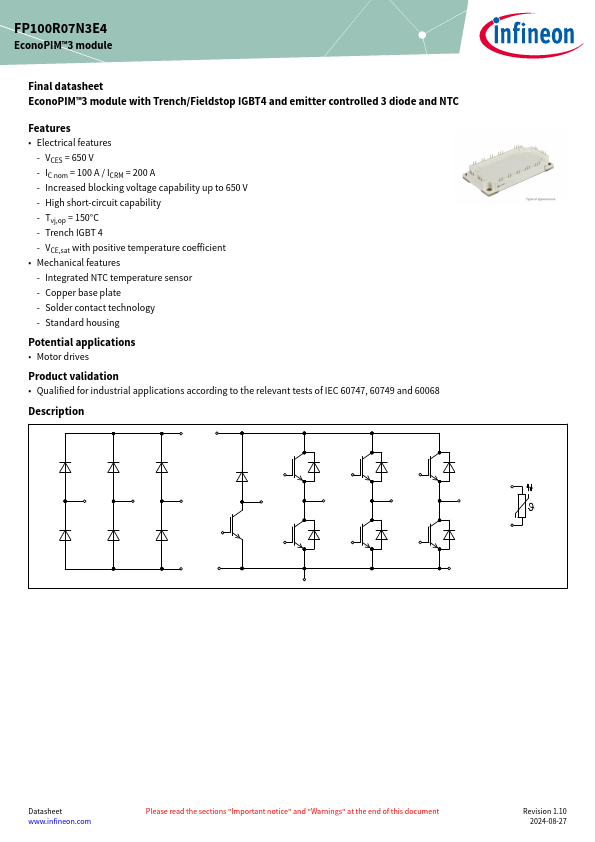

Features

Electrical features - VCES = 650 V - IC nom = 100 A / ICRM = 200 A - Increased blocking voltage capability up to 650 V - High short-circuit capability - Tvj,op = 150°C - Trench IGBT 4 - VCE,sat with positive temperature coefficient.
Mechanical features - Integrated NTC temperature sensor - Copper base plate - Solder contact technology - Standard housing Potential.
