FF6MR20W2M1H_B70 - EasyPACK 2B module

Product Overview

Infineon

Datasheet Details

Part number	FF6MR20W2M1H_B70
Manufacturer	Infineon
File Size	694.28 KB
Description	EasyPACK 2B module
Datasheet	FF6MR20W2M1H_B70 Datasheet

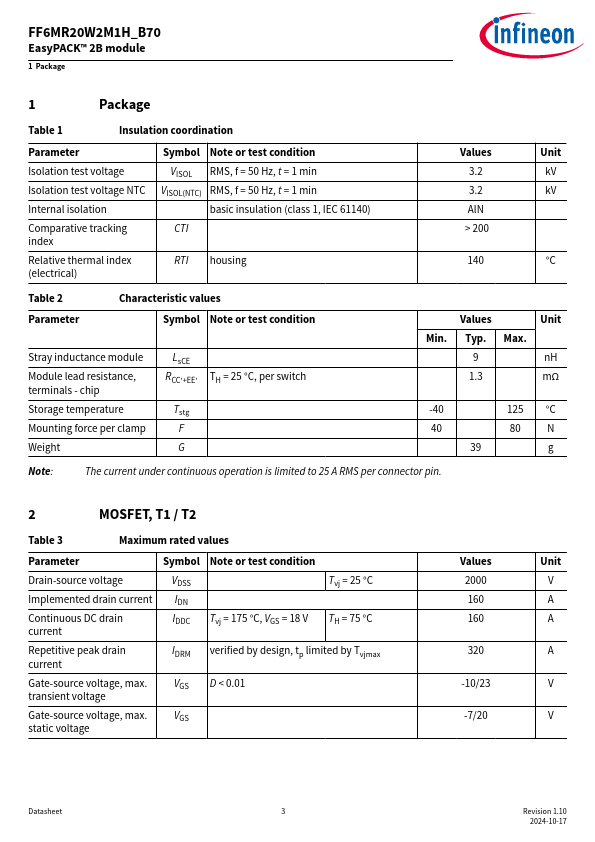

Additional preview pages of the FF6MR20W2M1H_B70 datasheet.

Product details

Description

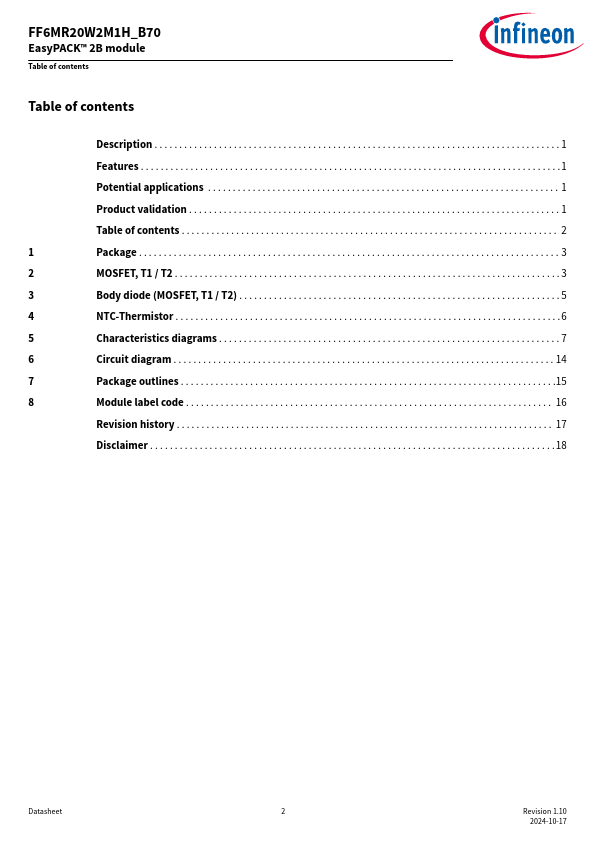

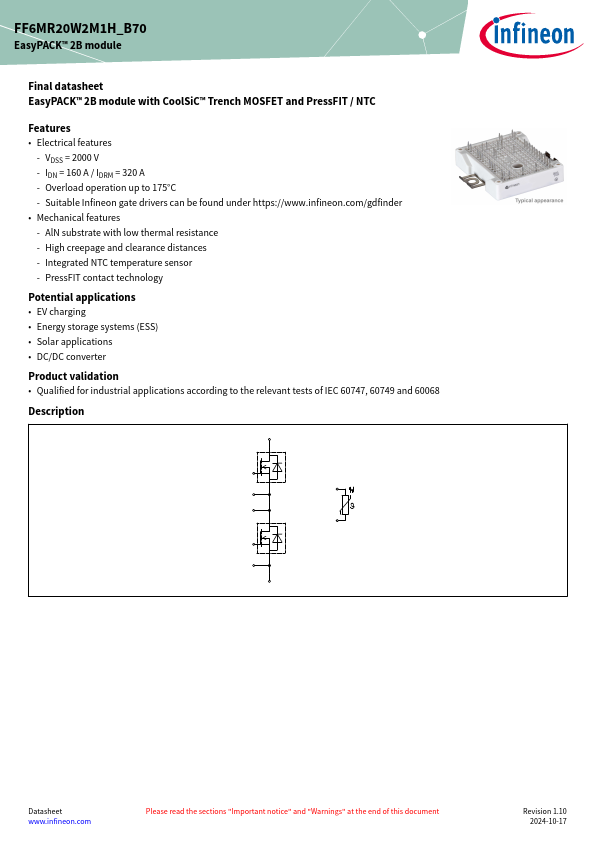

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2024-10-17 FF6MR20W2M1H_B70 EasyPACK™ 2B module Table of contents Table of contents Description .

Features

Electrical features - VDSS = 2000 V - IDN = 160 A / IDRM = 320 A - Overload operation up to 175°C - Suitable Infineon gate drivers can be found under https://www. infineon. com/gdfinder.
Mechanical features - AlN substrate with low thermal resistance - High creepage and clearance distances - Integrated NTC temperature sensor - PressFIT contact technology Potential.
