FF600R07ME4 - IGBT

Description

- Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2024-03-11 FF600R07ME4 EconoDUAL™3 module Table of contents Table of contents Description

Features

  • Electrical features - VCES = 650 V - IC nom = 600 A / ICRM = 1200 A - Trench IGBT 4 - Tvj,op = 150°C - High surge current capability - High short-circuit capability - High current density - Increased blocking voltage capability up to 650 V - Increased DC-link voltage.
  • Mechanical features - Copper base plate - High power density - Integrated NTC temperature sensor - Isolated base plate - Standard housing Potential.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FF600R12KE3 IGBT-Modules eupec GmbH
FF600R16KF4 IGBT eupec GmbH
FF60UA60DN fast Recovery Rectifier INCHANGE
FF6S Surface Mount Glass Passivated Fast Recovery Rectifier GOOD-ARK

Other Datasheets by Infineon

Part Number Description
FF600R07ME4_B11 IGBT
FF600R06ME3 IGBT
FF600R12IE4 IGBT
FF600R12IE4V IGBT
FF600R12IP4 IGBT

Full PDF Text Transcription

Click to expand full text

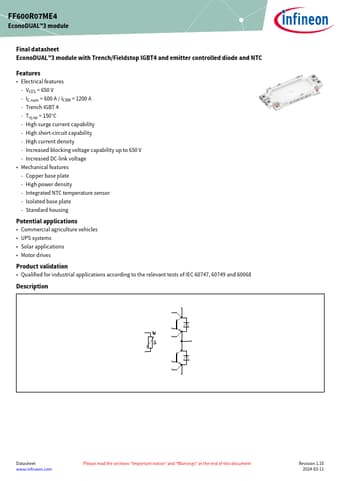

FF600R07ME4 EconoDUAL™3 module Final datasheet EconoDUAL™3 module with Trench/Fieldstop IGBT4 and emitter controlled diode and NTC Features • Electrical features - VCES = 650 V - IC nom = 600 A / ICRM = 1200 A - Trench IGBT 4 - Tvj,op = 150°C - High surge current capability - High short-circuit capability - High current density - Increased blocking voltage capability up to 650 V - Increased DC-link voltage • Mechanical features - Copper base plate - High power density - Integrated NTC temperature sensor - Isolated base plate - Standard housing Potential applications • Commercial agriculture vehicles • UPS systems • Solar applications • Motor drives Product validation • Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068 Description - Datashe
