FF4MR12W2M1H_B70 - EasyDUAL module

Product Overview

Infineon

Datasheet Details

Part number	FF4MR12W2M1H_B70
Manufacturer	Infineon
File Size	816.96 KB
Description	EasyDUAL module
Datasheet	FF4MR12W2M1H_B70 Datasheet

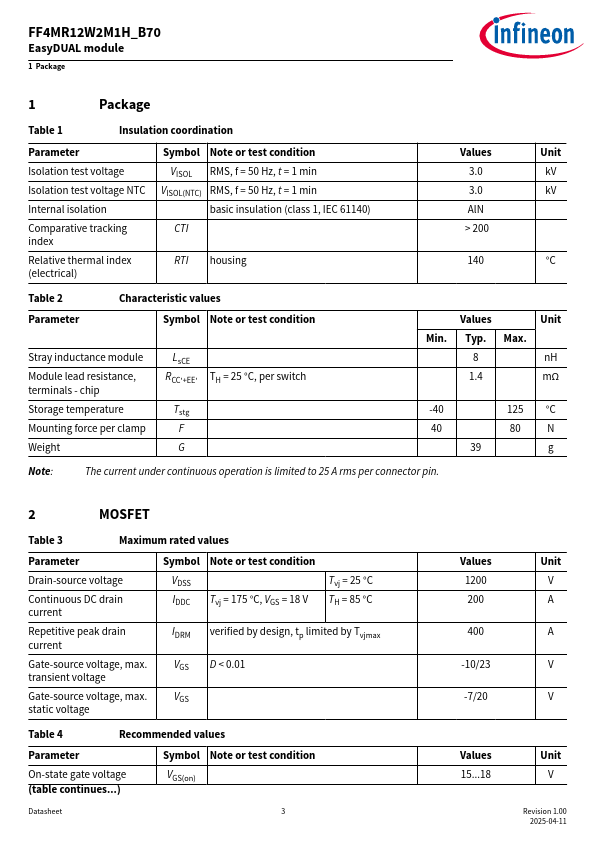

Additional preview pages of the FF4MR12W2M1H_B70 datasheet.

Product details

Description

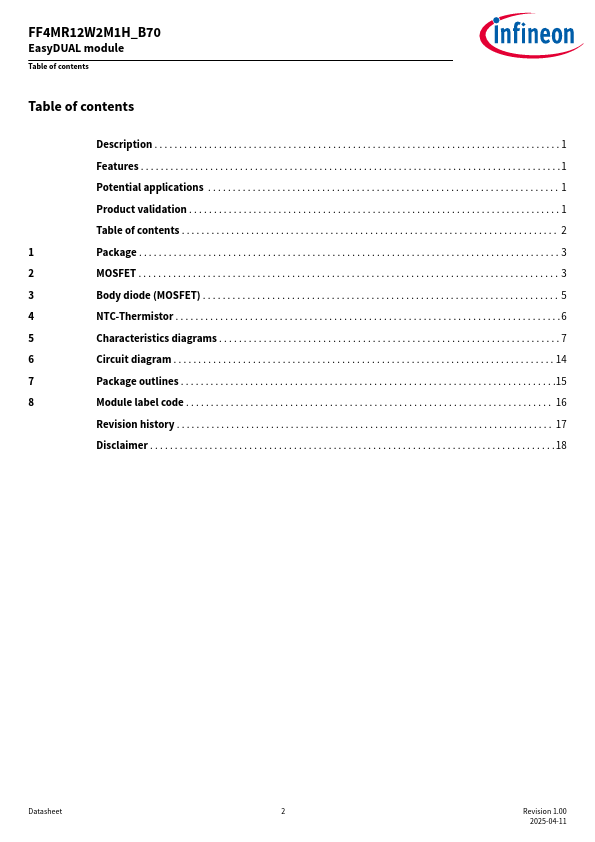

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2025-04-11 FF4MR12W2M1H_B70 EasyDUAL module Table of contents Table of contents Description .

Features

Electrical features - VDSS = 1200 V - IDN = 200 A / IDRM = 400 A - Low inductive design - Low switching losses - High current density - Suitable Infineon gate drivers can be found under https://www. infineon. com/gdfinder.
Mechanical features - Improved ceramic substrate - Integrated NTC temperature sensor - PressFIT contact technology - Rugged mounting due to integrated mounting clamps Potential.
