FF4000UXTR33T2M1 - XHP 2 module

Description

J Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-07-05 FF4000UXTR33T2M1 XHP™2 module Table of contents Table of contents Description

Features

  • Electrical features - VDSS = 3300 V - IDN = 500 A / IDRM = 1000 A - Tvj,op = 175°C - Low switching losses - High current density - Low inductive design.
  • Mechanical features - High power density - Package with CTI > 600 - High creepage and clearance distances - AlSiC base plate for increased thermal cycling capability - AlN substrate with low thermal resistance Potential.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FF400R12KE3 IGBT-inverter eupec GmbH
FF4S Surface Mount Glass Passivated Fast Recovery Rectifier GOOD-ARK

Other Datasheets by Infineon

Part Number Description
FF400R06KE3 IGBT-Module
FF400R07A01E3_S6 Double Side Cooled Module
FF400R07KE4 IGBT
FF400R12KE3 IGBT
FF400R12KE3_B2 IGBT

Full PDF Text Transcription

Click to expand full text

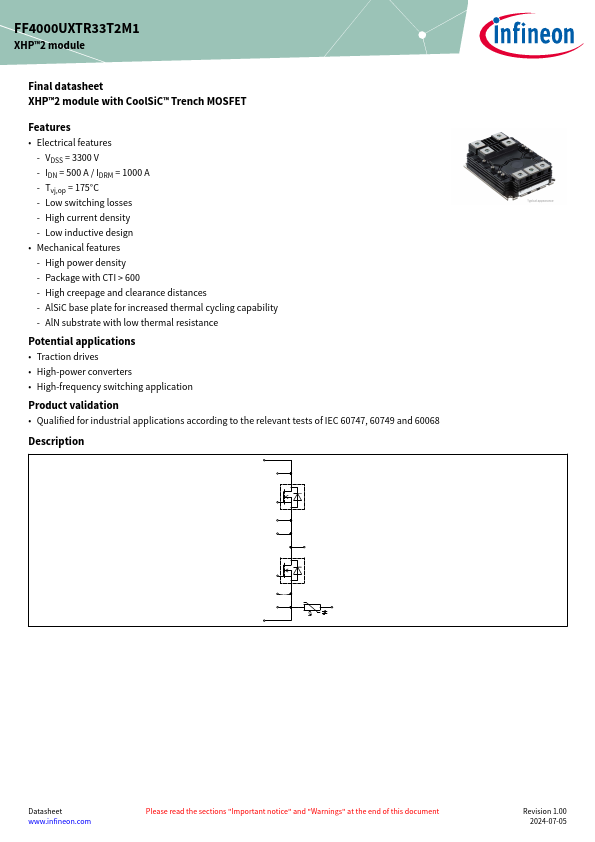

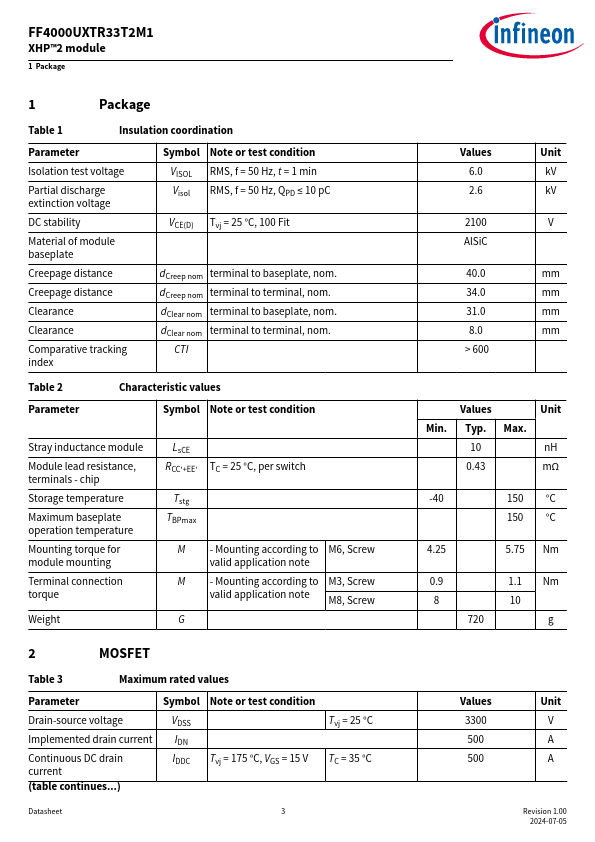

FF4000UXTR33T2M1 XHP™2 module Final datasheet XHP™2 module with CoolSiC™ Trench MOSFET Features • Electrical features - VDSS = 3300 V - IDN = 500 A / IDRM = 1000 A - Tvj,op = 175°C - Low switching losses - High current density - Low inductive design • Mechanical features - High power density - Package with CTI > 600 - High creepage and clearance distances - AlSiC base plate for increased thermal cycling capability - AlN substrate with low thermal resistance Potential applications • Traction drives • High-power converters • High-frequency switching application Product validation • Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068 Description J Datasheet www.infineon.
