FB20R06W1E3_B11 IGBT

FB20R06W1E3_B11 Description

Technische Information / Technical Information IGBT-Module IGBT-modules FB20R06W1E3_B11 EasyPIM™ Modul mit Trench/Feldstopp IGBT3 und Emitter Contr.

FB20R06W1E3_B11 Features

* Low Switching Losses
* Low VCEsat
* Trench IGBT 3
* VCEsat with positive Temperature Coefficient Mechanical Features
* Al2O3 Substrate with Low Thermal Resistance
* Compact design
* PressFIT Contact Technology
* Rugged mounting due t

FB20R06W1E3_B11 Applications

* Auxiliary Inverters
* Air Conditioning

📥 Download Datasheet

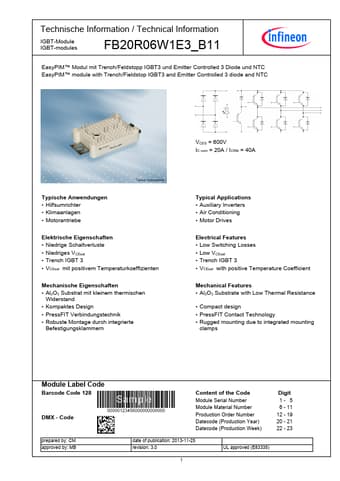

Preview of FB20R06W1E3_B11 PDF
datasheet Preview Page 2 datasheet Preview Page 3
