FB2022 - TRANSMIT / RECEIVER FILTER

Bothhand USA

Datasheet Details

Part number	FB2022
Manufacturer	Bothhand USA
File Size	244.86 KB
Description	TRANSMIT / RECEIVER FILTER
Datasheet	FB2022 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FB2031	9-bit latched/registered/pass-thru Futurebus transceiver	NXP
FB2033	8-bit latched/registered/pass-thru Futurebus universal interface transceiver	NXP
FB2040A	8-bit Futurebus transceiver	NXP
FB2041	7-bit Futurebus transceiver	NXP
FB20R06KL4	IGBT-Modules	eupec GmbH

Other Datasheets by Bothhand USA

Part Number	Description
FB2022D	10 BASE-T LOW PASS FILTERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

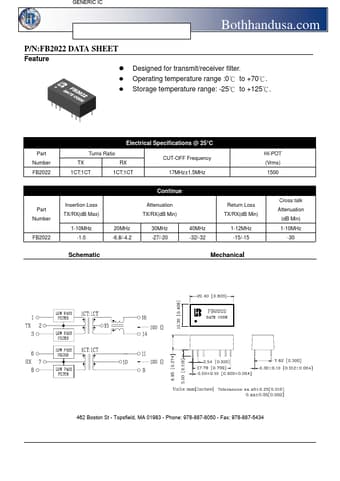

GENERIC IC Bothhandusa.com P/N:FB2022 DATA SHEET Feature ! ! ! Designed for transmit/receiver filter. Operating temperature range :0℃ to +70℃. Storage temperature range: -25℃ to +125℃. Part Number FB2022 Electrical Specifications @ 25°C Turns Ratio TX RX CUT-OFF Frequency 1CT:1CT 1CT:1CT 17MHz±1.5MHz HI-POT (Vrms) 1500 Part Number FB2022 Insertion Loss TX/RX(dB Max) 1-10MHz -1.0 Continue Attenuation TX/RX(dB Min) 20MHz -6.8/-4.
