BTS7010-1EPA Datasheet (Infineon) - Smart High-Side Power Switch

BTS7010-1EPA, Smart High-Side Power Switch

The BTS7010-1EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt

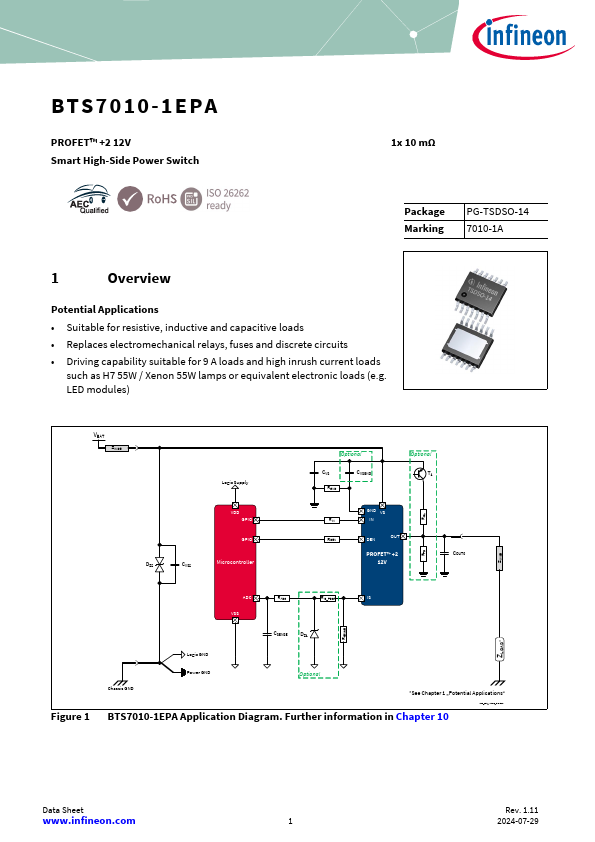

BTS7010-1EPA PROFET™ +2 12V Smart High-Side Power Switch 1x 10 mΩ Package Marking PG-TSDSO-14 7010-1A 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 9 A loads and high inrush current loads such as H7 55W / Xenon 55W lamps or equivalent electronic loads (e.g.

LED modules) VBAT ZWIRE Logic Supply VDD GPIO GPIO DZ2 CVS2 Mi

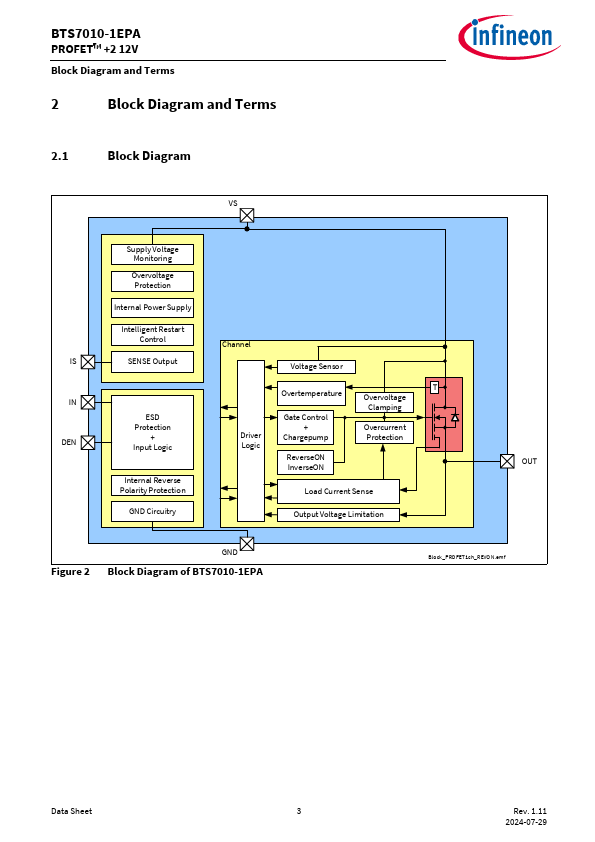

BTS7010-1EPA Features

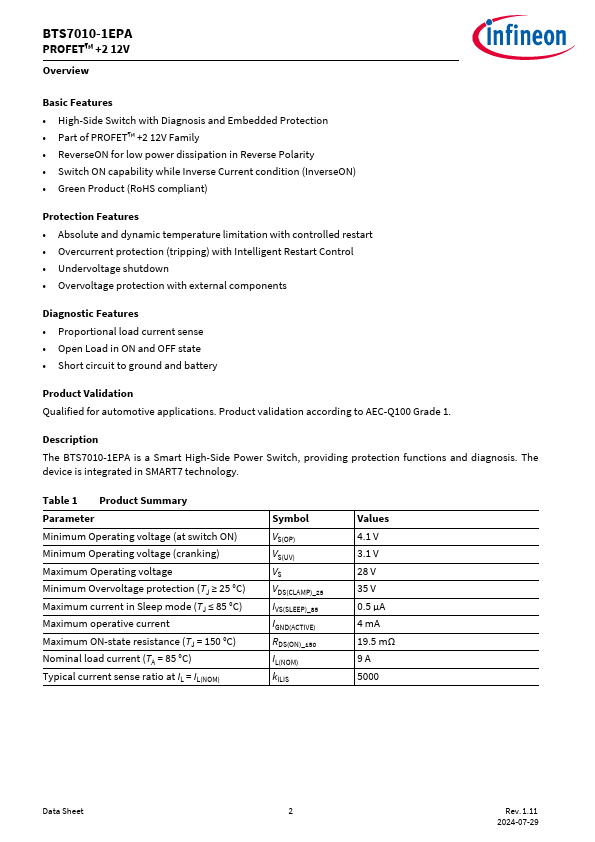

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* ReverseON for low power dissipation in Reverse Polarity

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection
