BTS710L1 - Smart Four Channel Highside Power Switch

Name: BTS710L1
SKU: BTS710L1-364525

Siemens Semiconductor Group

📥 Download Datasheet

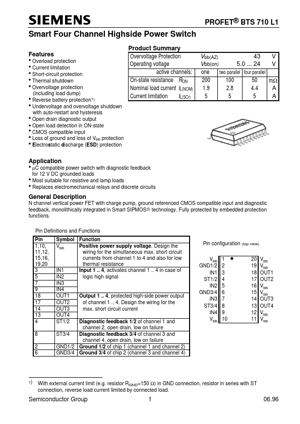

BTS710L1 Datasheet Preview — Preview of BTS710L1 PDF

Datasheet Details

Part number	BTS710L1
Manufacturer	Siemens Semiconductor Group
File Size	180.82 KB
Description	Smart Four Channel Highside Power Switch
Datasheet	BTS710L1_SiemensSemiconductorGroup.pdf

BTS710L1 Product details

Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.

Features

Overload protection.
Current limitation.
Short-circuit protection.
Thermal shutdown.
Overvoltage protection (including load dump).
Reverse battery protection1).
Undervoltage and overvoltage shutdown with auto-restart and hysteresis.
Open drain diagnostic output.
Open load detection in ON-state.
CMOS compatible input.
Loss of ground and loss of Vbb protection.
Electrostatic discharge (ESD).
