BTS7008-2EPA Datasheet (Infineon) - Smart High-Side Power Switch

BTS7008-2EPA, Smart High-Side Power Switch

The BTS7008-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis.

The device is integrated in SMART7 technology.

Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt

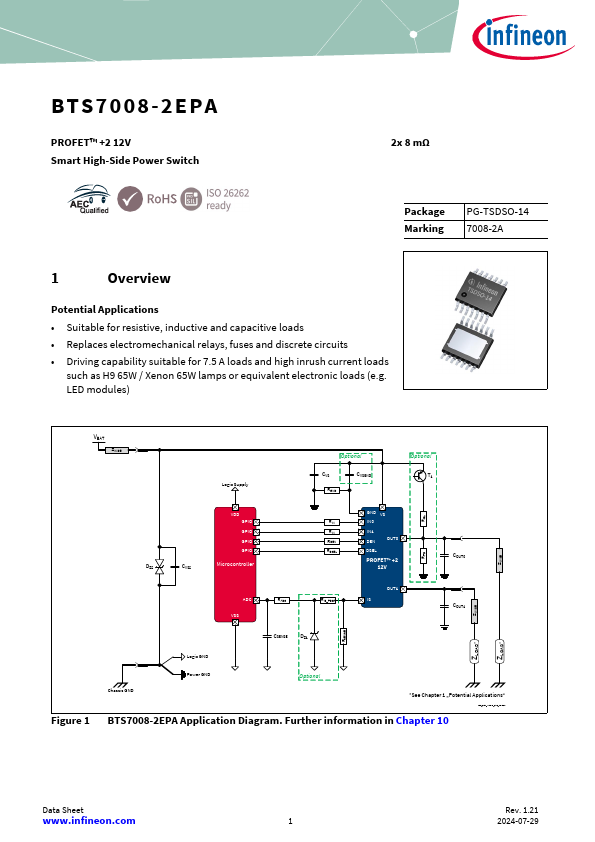

BTS7008-2EPA PROFET™ +2 12V Smart High-Side Power Switch 2x 8 mΩ Package Marking PG-TSDSO-14 7008-2A 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 7.5 A loads and high inrush current loads such as H9 65W / Xenon 65W lamps or equivalent electronic loads (e.g.

LED modules) VBAT ZWIRE Logic Supply Optional CVS RGND CVSGND

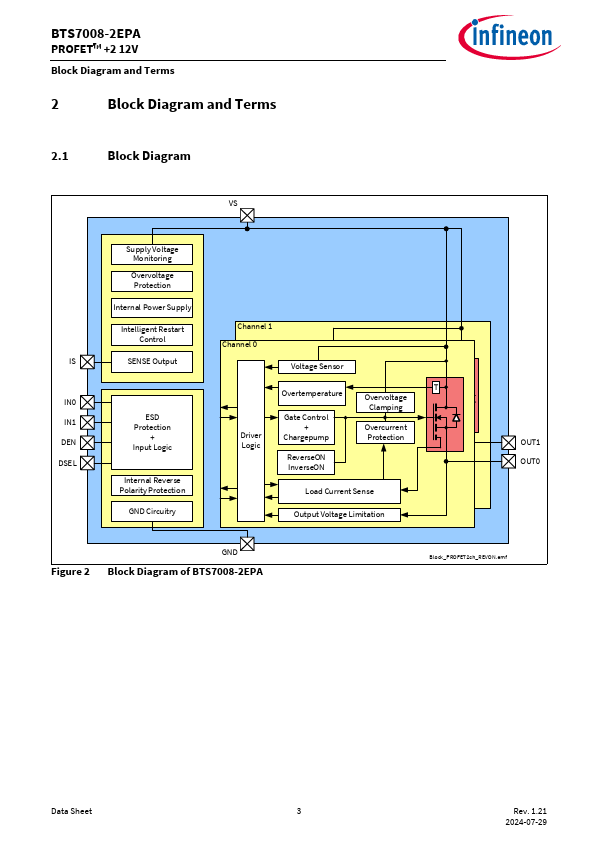

BTS7008-2EPA Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* ReverseON for low power dissipation in Reverse Polarity

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection
