BSC110N15NS5 - 150V MOSFET

Description

.

.

.

.

Features

  • N-channel, normal level.
  • Excellent gate charge x RDS(on) product (FOM).
  • Very low on-resistance RDS(on).
  • 150 °C operating temperature.
  • Pb-free lead plating; RoHS compliant.
  • Qualified according to JEDEC1) for target.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSC110N06NS3G Power-Transistor Infineon Technologies
BSC118N10NSG Power-Transistor Infineon Technologies
BSC119N03SG Power-Transistor Infineon Technologies
BSC105N10LSFG Power-Transistor Infineon Technologies
BSC106N025SG Power-Transistor Infineon Technologies

Other Datasheets by Infineon

Part Number Description
BSC110N15NS5SC MOSFET
BSC112N06LD 60V MOSFET
BSC117N08NS5 MOSFET
BSC100N03LSG Power-Transistor
BSC100N03MSG Power-Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

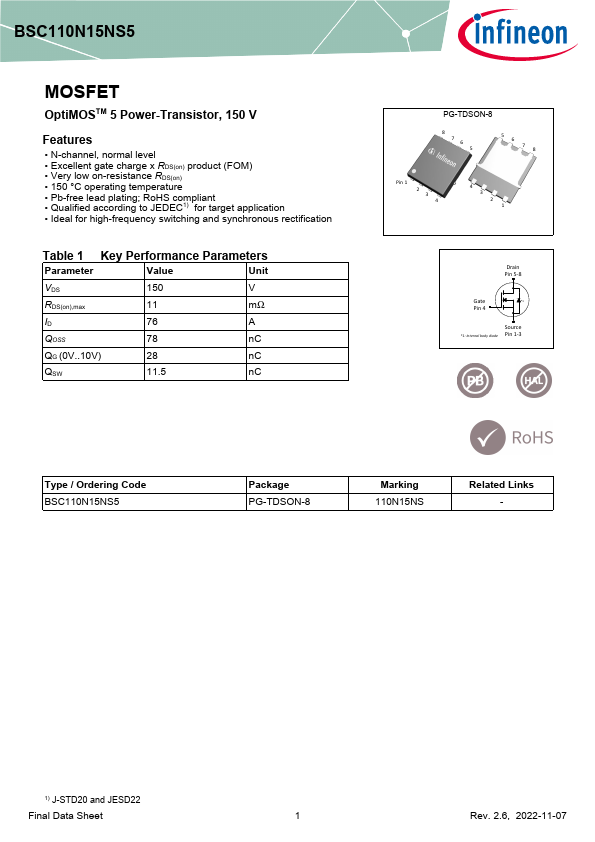

BSC110N15NS5 MOSFET OptiMOSTM5Power-Transistor,150V Features •N-channel,normallevel •ExcellentgatechargexRDS(on)product(FOM) •Verylowon-resistanceRDS(on) •150°Coperatingtemperature •Pb-freeleadplating;RoHScompliant •QualifiedaccordingtoJEDEC1)fortargetapplication •Idealforhigh-frequencyswitchingandsynchronousrectification Table1KeyPerformanceParameters Parameter Value Unit VDS 150 V RDS(on),max 11 mΩ ID 76 A QOSS 78 nC QG (0V..10V) 28 nC QSW 11.5 nC PG-TDSON-8 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate *1 Pin 4 Source *1: Internal body diode Pin 1-3 Type/OrderingCode BSC110N15NS5 Package PG-TDSON-8 Marking 110N15NS RelatedLinks - 1) J-STD20 and JESD22 Final Data Sheet 1 Rev.2.
