BGMC1210 - Power Amplifier Bias and Control IC

BGMC1210 Description

BGMC1210 BGMC1210 Power Amplifier Bias and Control IC .
The BGMC1210 is a bias and control IC for Power Amplifiers (PA) that operate with negative Gate-Source voltages (e.

BGMC1210 Features

* 2x 4 analog outputs with up to 50mA sourcing and 20mA sinking capability o 12 Bit DACs with programmable ranges:
* 03.5V and 07V
* bipolar range support: from -7…0V up to 0…7V o Programmable offset for range adaption o Internal voltage reference o Configurable tracking mode o Optional

📥 Download Datasheet

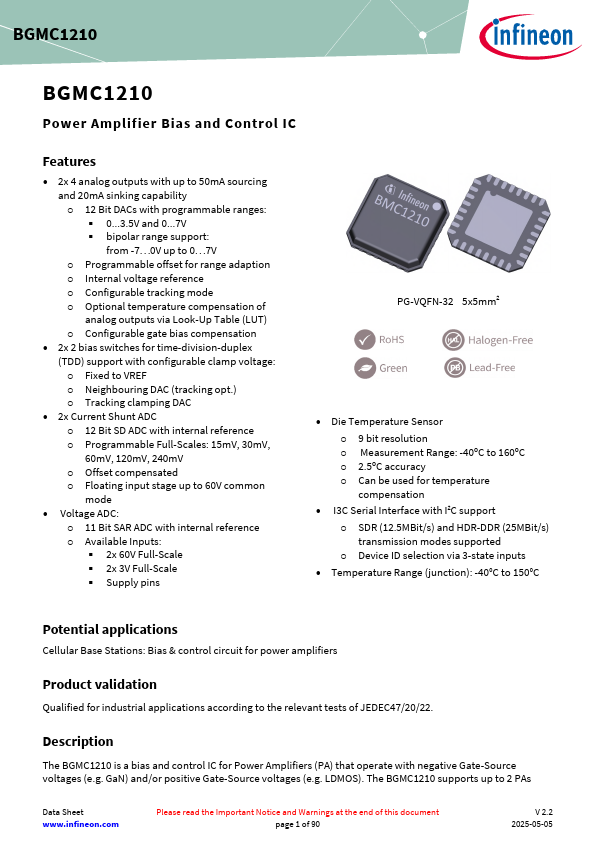

Preview of BGMC1210 PDF

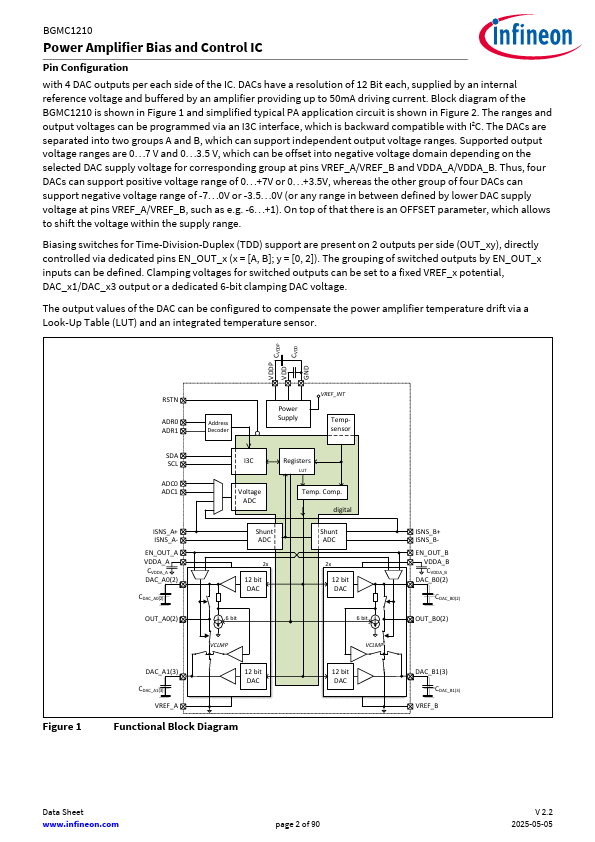

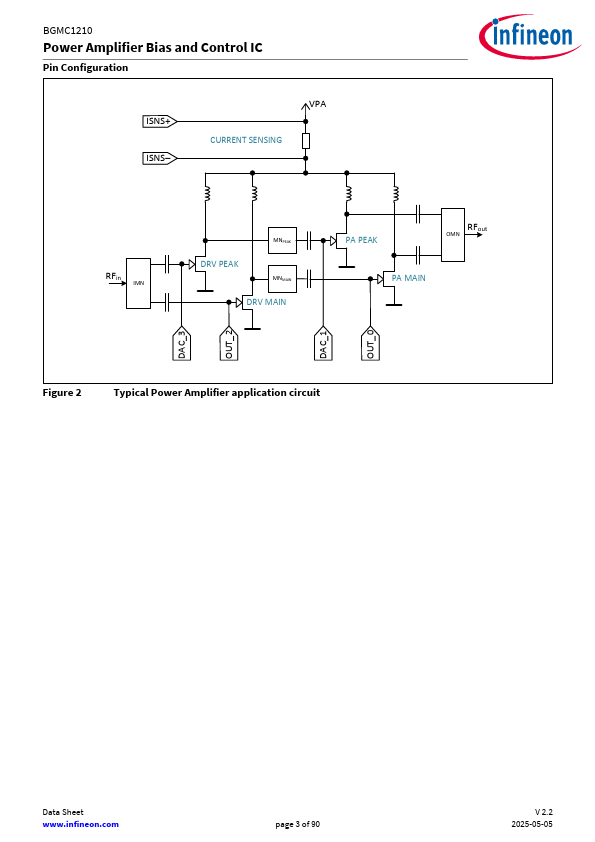

datasheet Preview Page 2 datasheet Preview Page 3
