BGM687U50 - 7x LNA Bank

Product Overview

Infineon

📥 Download Datasheet

BGM687U50 7x LNA Bank by Infineon - Datasheet Preview — Datasheet preview – BGM687U50

Datasheet Details

Part number	BGM687U50
Manufacturer	Infineon
File Size	968.03 KB
Description	7x LNA Bank
Datasheet	BGM687U50 Datasheet

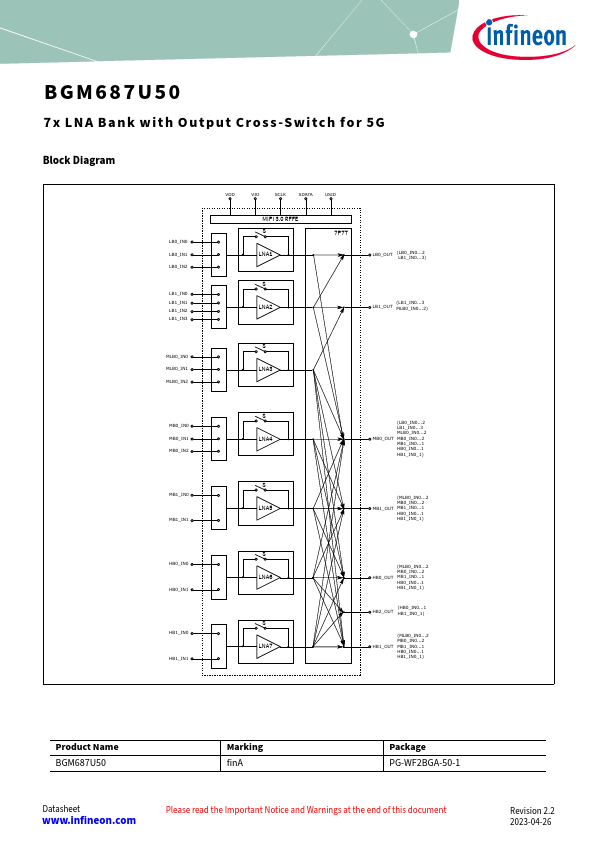

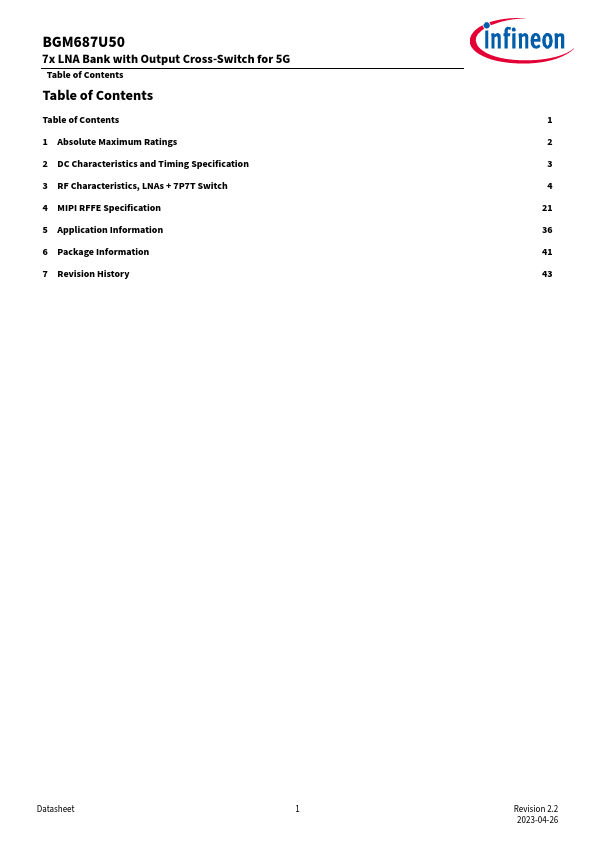

Additional preview pages of the BGM687U50 datasheet.

Product details

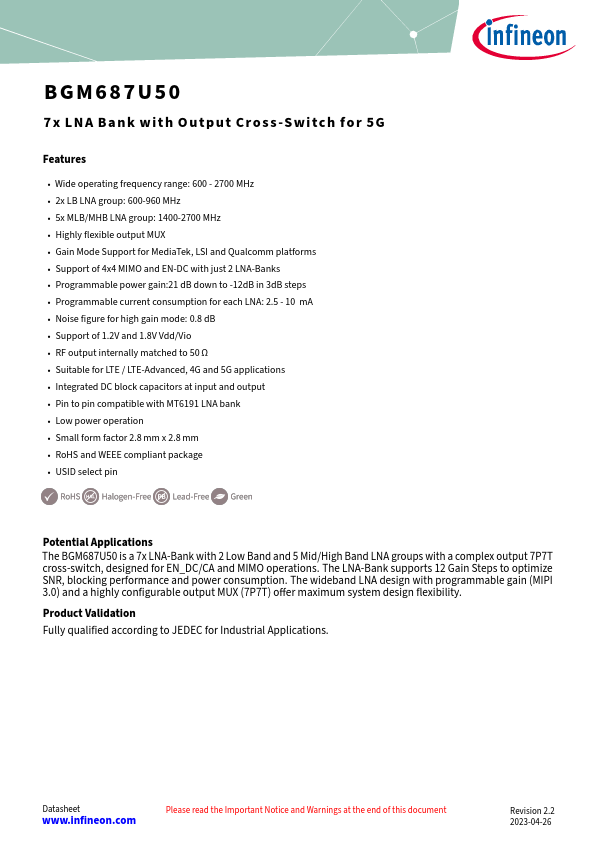

Features

Wide operating frequency range: 600 - 2700 MHz.
2x LB LNA group: 600-960 MHz.
5x MLB/MHB LNA group: 1400-2700 MHz.
Highly flexible output MUX.
Gain Mode Support for MediaTek, LSI and Qualcomm platforms.
Support of 4x4 MIMO and EN-DC with just 2 LNA-Banks.
Programmable power gain:21 dB down to -12dB in 3dB steps.
Programmable current consumption for each LNA: 2.5 - 10 mA.
Noise figure for high gain mode: 0.8 dB.
