2EDF7175F, 2EDF7275F - MOSFET gate-driver

Infineon

The 2EDF7175F by Infineon is a MOSFET gate-driver. Below is the official datasheet preview.

📥 Download Datasheet

2EDF7175F MOSFET gate-driver by Infineon - Datasheet Preview — Official preview page of the **2EDF7175F** MOSFET gate-driver datasheet (Infineon).

Datasheet Details

Part number	2EDF7175F, 2EDF7275F
Manufacturer	Infineon
File Size	726.18 KB
Description	MOSFET gate-driver
Datasheet	2EDF7275F-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2EDF7175F, 2EDF7275F. Please refer to the document for exact specifications by model.
Additional preview pages of the 2EDF7175F datasheet.

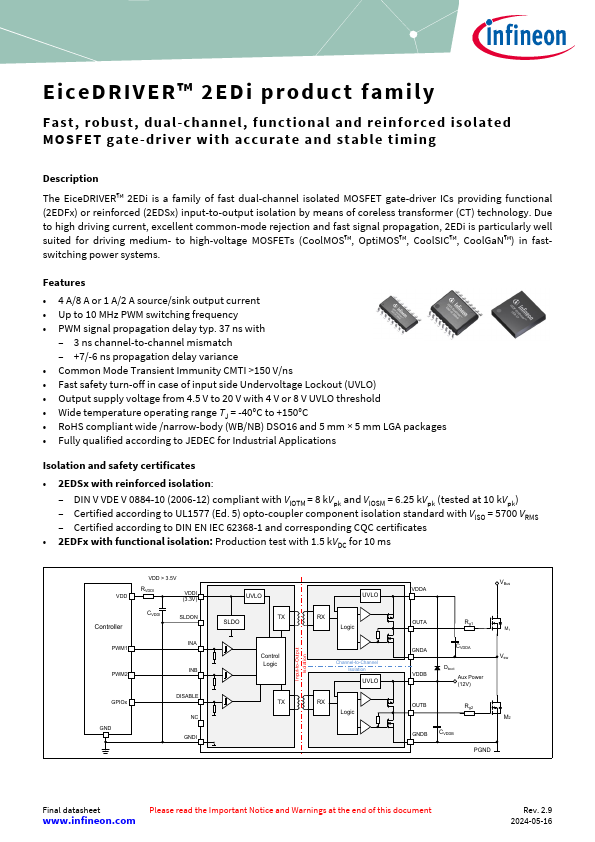

2EDF7175F Product details

Description

The EiceDRIVER™ 2EDi is a family of fast dual-channel isolated MOSFET gate-driver ICs providing functional (2EDFx) or reinforced (2EDSx) input-to-output isolation by means of coreless transformer (CT) technology.

Features

4 A/8 A or 1 A/2 A source/sink output current.
Up to 10 MHz PWM switching frequency.
PWM signal propagation delay typ. 37 ns with.
3 ns channel-to-channel mismatch.
+7/-6 ns propagation delay variance.
Common Mode Transient Immunity CMTI >150 V/ns.
Fast safety turn-off in case of input side Undervoltage Lockout (UVLO).
Output supply voltage from 4.5 V to 20 V with 4 V or 8 V UVLO threshold.
Wide temperature operati.
