2EDF5215G, 2EDF5215F - high-side and low-side gate driver

Infineon

The 2EDF5215G by Infineon is a high-side and low-side gate driver. Below is the official datasheet preview.

📥 Download Datasheet

2EDF5215G high-side and low-side gate driver by Infineon - Datasheet Preview — Official preview page of the 2EDF5215G high-side and low-side gate driver datasheet (Infineon).

Datasheet Details

Part number	2EDF5215G, 2EDF5215F
Manufacturer	Infineon
File Size	1.82 MB
Description	high-side and low-side gate driver
Datasheet	2EDF5215F-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2EDF5215G, 2EDF5215F. Please refer to the document for exact specifications by model.
Additional preview pages of the 2EDF5215G datasheet.

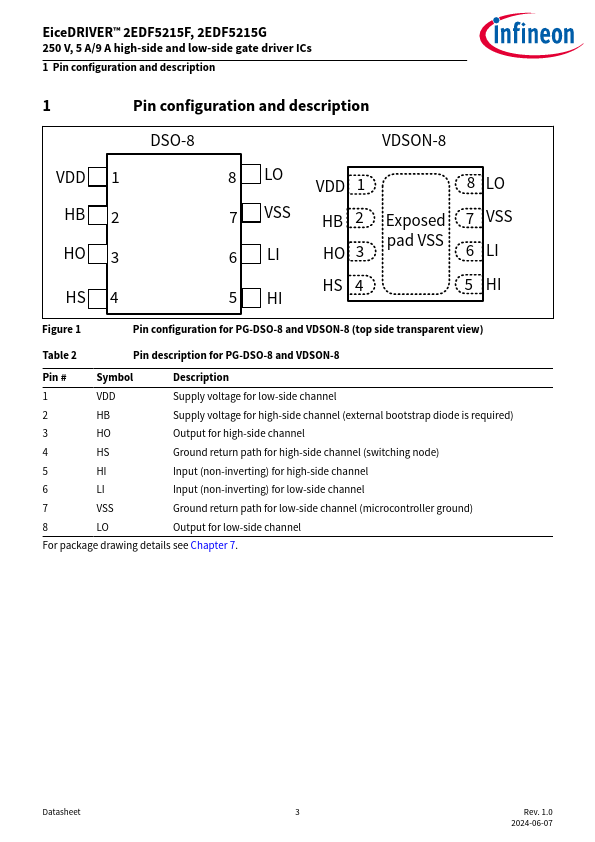

2EDF5215G Product details

Description

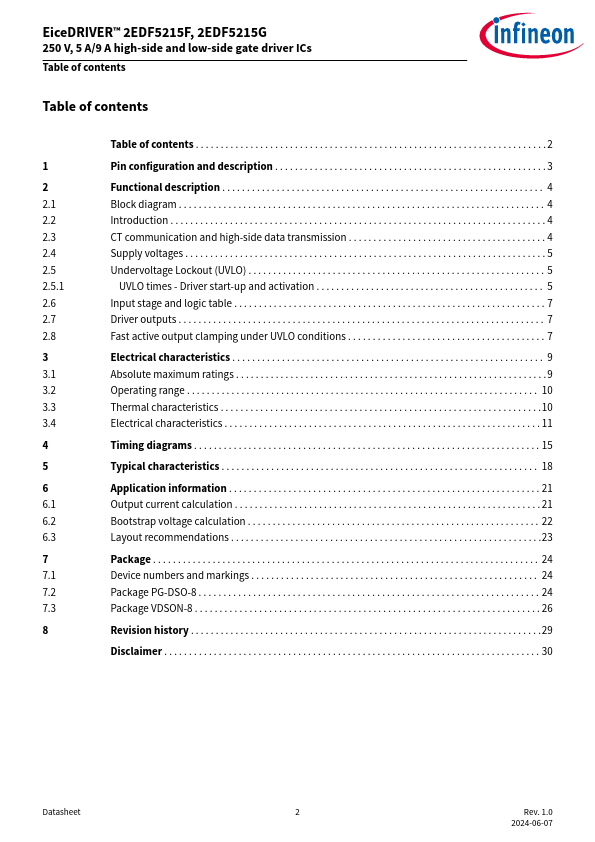

3 Functional description 4 Block diagram .

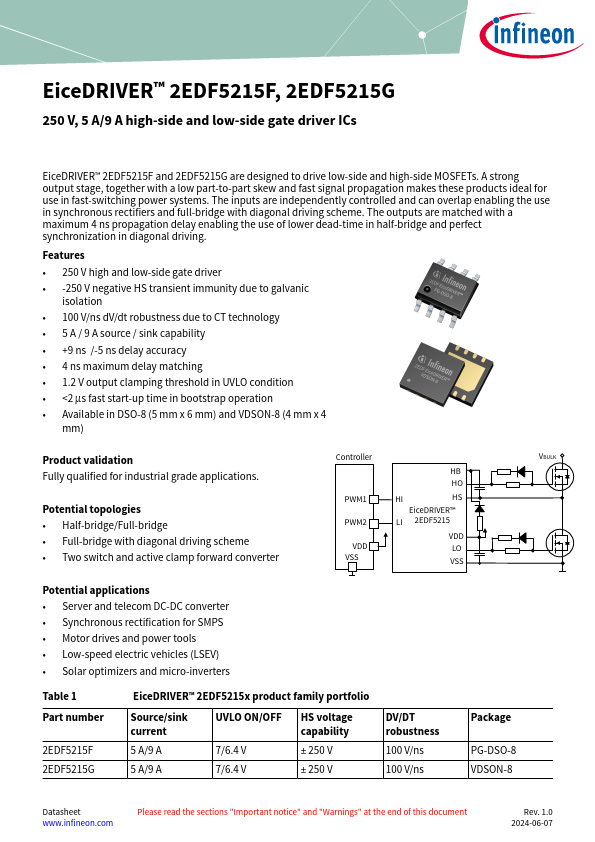

Features

250 V high and low-side gate driver.
-250 V negative HS transient immunity due to galvanic isolation.
100 V/ns dV/dt robustness due to CT technology.
5 A / 9 A source / sink capability.
+9 ns /-5 ns delay accuracy.
4 ns maximum delay matching.
1.2 V output clamping threshold in UVLO condition.
