TUA6010XS - Wireless Components

Infineon Technologies

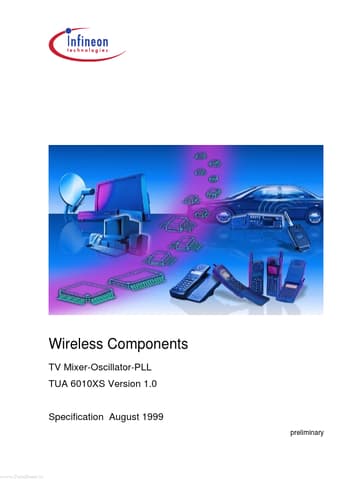

TUA6010XS Datasheet Preview — Preview of TUA6010XS PDF

Datasheet Details

Part number	TUA6010XS
Manufacturer	Infineon ↗ Technologies
File Size	380.68 KB
Description	Wireless Components
Datasheet	TUA6010XS_InfineonTechnologies.pdf

TUA6010XS Product details

Description

The TUA 6010XS device combines a Package digitally programmable phase locked loop (PLL), with a mixer-oscillator block including two balanced mixers and oscillators for use in TV tuners.

Features

PLL with short lock-in time; no asynchronous divider stage Fast I2C bus mode possible 4 programmable chip addresses Short pull-in time for quick channel access and optimized loop stability 3 high-current switch outputs 2 TTL inputs 5-level A/D converter Lock-in flag Power-down flag Few external components Frequency and amplitude-stable balanced oscillator for the VHF, HYPER and UHF frequency range Optimum decoupling of input frequency from oscillator The IC is suitable for all tuners in TV- and.
