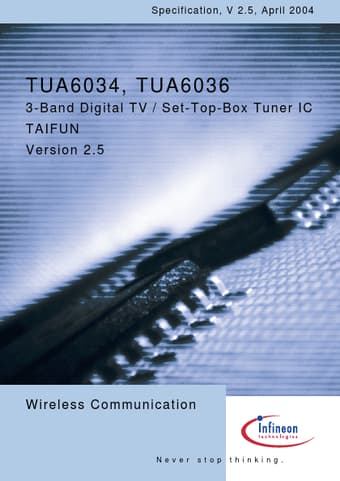

TUA6034, TUA - 3-Band Digital TV / Set-Top-Box Tuner IC

Infineon Technologies AG

Datasheet Details

Part number	TUA6034, TUA
Manufacturer	Infineon ↗ Technologies AG
File Size	1.25 MB
Description	3-Band Digital TV / Set-Top-Box Tuner IC
Datasheet	TUA-603.pdf
Note	This datasheet PDF includes multiple part numbers: TUA6034, TUA. Please refer to the document for exact specifications by model.

and charts stated herein.

General.
Suitable for PAL, NTSC, DVB and ATSC Wideband AGC detector for internal tuner AGC.
5 programmable take-over points.
2 programmable time constants Low phase noise Full ESD protection High impedance mixer input (common emitter) for LOW band Low impedance mixer input (common base) for MID band Low impedance mixer input (common base) for HIGH band 2 pin oscillator for LOW band 2 pin oscillator for MID band 4 pin oscillator for HIGH band Symmetrical IF pr.
