SIGC156T120R2CS - IGBT

Infineon Technologies

The SIGC156T120R2CS by Infineon Technologies is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

SIGC156T120R2CS IGBT by Infineon Technologies - Datasheet Preview — Official preview page of the **SIGC156T120R2CS** IGBT datasheet (Infineon Technologies).

Datasheet Details

Part number	SIGC156T120R2CS
Manufacturer	Infineon Technologies
File Size	95.50 KB
Description	IGBT
Datasheet	SIGC156T120R2CS_InfineonTechnologies.pdf

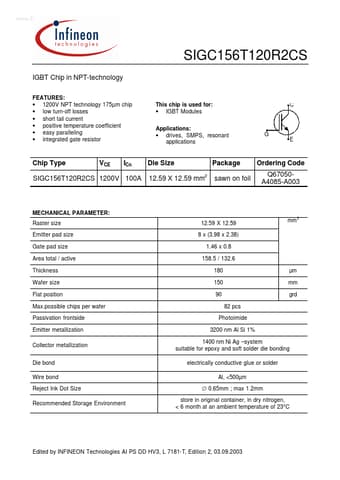

Additional preview pages of the SIGC156T120R2CS datasheet.

SIGC156T120R2CS Product details

Description

Eupec FS100R12KS4 AQL 0,65 for visual inspection according to failure catalog Electrostatic Discharge Sensitive Device according to MIL-STD 883 Test-Normen Villach/Prüffeld Published by Infineon Technologies AG, Bereich Kommunikation St.-Martin-Strasse 53, D-81541 München © Infineon Technologies AG 2002 All Rights Reserved.Attention please! The information herein is given to describe certain components and shall not be considered as warranted characteristics.Terms of delivery and rights

Features

1200V NPT technology 175µm chip.
low turn-off losses.
short tail current.
positive temperature coefficient.
easy paralleling.
integrated gate resistor This chip is used for:.
IGBT Modules.
