MCT276, MCT275 - (MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler

Infineon Technologies

The MCT276 by Infineon Technologies is a (MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler. Below is the official datasheet preview.

📥 Download Datasheet

MCT276 (MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler by Infineon Technologies - Datasheet Preview — Official preview page of the **MCT276** (MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler datasheet (Infineon Technologies).

Datasheet Details

Part number	MCT276, MCT275
Manufacturer	Infineon Technologies
File Size	408.09 KB
Description	(MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler
Datasheet	MCT275_InfineonTechnologies.pdf
Note	This datasheet PDF includes multiple part numbers: MCT276, MCT275. Please refer to the document for exact specifications by model.

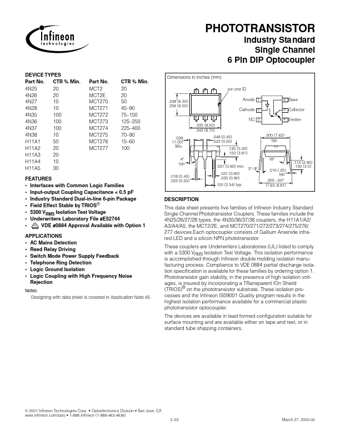

Additional preview pages of the MCT276 datasheet.

MCT276 Product details

Description

This data sheet presents ﬁve families of Inﬁneon Industry Standard Single Channel Phototransistor Couplers.

Features

Interfaces with Common Logic Families.
Input-output Coupling Capacitance < 0.5 pF.
Industry Standard Dual-in-line 6-pin Package.
Field Effect Stable by TRIOS®.
5300 VRMS Isolation Test Voltage.
Underwriters Laboratory File #E52744.
V VDE #0884 Approval Available with Option 1 D E.
