IPI65R190E6 - Power Transistor

Download the IPI65R190E6 datasheet PDF (IPA-65R190 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for power transistor.

Description

CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineon Technologies.

CoolMOS™ E6 series combines the experience of the leading SJ MOSFET supplier with high class innovation.

Features

  • Extremely low losses due to very low FOM Rdson.
  • Qg and Eoss.
  • Very high commutation ruggedness.
  • Easy to use/drive.
  • JEDEC1) qualified, Pb-free plating, Halogen free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IPA-65R190-E6.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Infineon Technologies

Full PDF Text Transcription

Click to expand full text

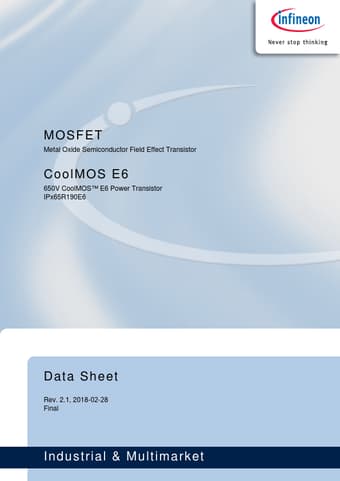

MOSFET Metal Oxide Semiconductor Field Effect Transistor CoolMOS E6 650V CoolMOS™ E6 Power Transistor IPx65R190E6 Data Sheet Rev. 2.1, 2018-02-28 Final Industrial & Multimarket 650V CoolMOS™ E6 Power Transistor 1 Description CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineon Technologies. CoolMOS™ E6 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The offered devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, more compact, lighter, and cooler.
