BSS816NW - Small-Signal-Transistor

Infineon Technologies

Datasheet Details

Part number	BSS816NW
Manufacturer	Infineon Technologies
File Size	180.63 KB
Description	Small-Signal-Transistor

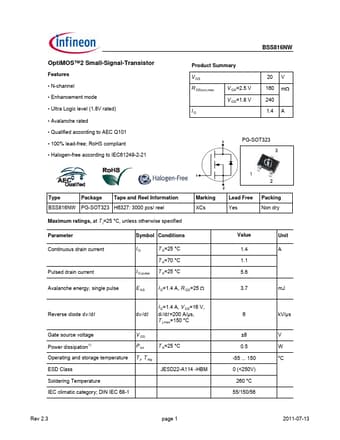

Datasheet	BSS816NW-InfineonTechnologies.pdf

N-channel.
Enhancement mode.
Ultra Logic level (1.8V rated).
Avalanche rated.
Qualified according to AEC Q101.
100% lead-free; RoHS compliant.
Halogen-free according to IEC61249-2-21 BSS816NW Product Summary V DS R DS(on),max ID V GS=2.5 V V GS=1.8 V 20 V 160 mΩ 240 1.4 A PG-SOT323 3 1 2 Type Package Tape and Reel Information BSS816NW PG-SOT323 H6327: 3000 pcs/ reel Maximum ratings, at T j=25 °C, unless otherwise specifie.
