Full PDF Text Transcription

Click to expand full text

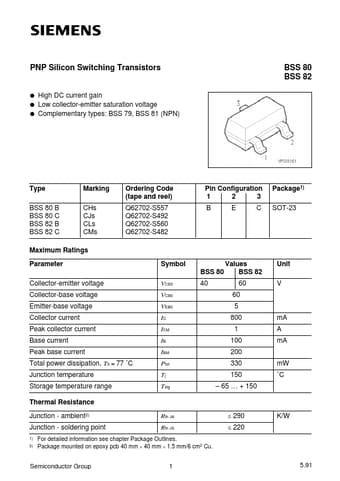

PNP Silicon Switching Transistors BSS 80 BSS 82 High DC current gain q Low collector-emitter saturation voltage q Complementary types: BSS 79, BSS 81 (NPN) q Type BSS 80 B BSS 80 C BSS 82 B BSS 82 C Marking CHs CJs CLs CMs Ordering Code (tape and reel) Q62702-S557 Q62702-S492 Q62702-S560 Q62702-S482 Pin Configuration 1 2 3 B E C Package1) SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current Total power dissipation, TS = 77 ˚C Junction temperature Storage temperature range Thermal Resistance Junction - ambient2) Junction - soldering point 1) 2) Symbol VCE0 VCB0 VEB0 IC ICM IB IBM Ptot Tj Tstg Values BSS 82 BSS 80 40 5 800 1 100 200 330 150 – 65 … + 150 60 60 U
