BTS4880R Datasheet (Infineon Technologies AG) - Smart Power High-Side-Switch Eight Channels: 8 x 200 m

BTS4880R, Smart Power High-Side-Switch Eight Channels: 8 x 200 m

N channel vertical power FET with charge pump, ground referenced CMOS or Vbb/2 compatible input and common diagnostic feedback, monolithically integrated in Smart SIPMOS technology.

Providing embedded protective functions.

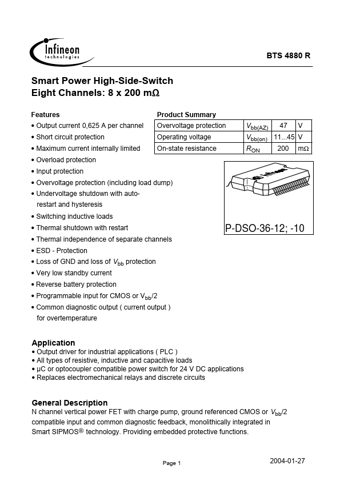

Page 1 2004-01-27 BTS 4880 R Block Diagram D IA G V bb LS U ndervoltage

BTS4880R Features

* Output current 0,625 A per channel

* Short circuit protection

* Maximum current internally limited

* Overload protection

* Input protection

* Overvoltage protection (including load dump)

* Undervoltage shutdown with autorestart and hysteresis
