BTS141 - Smart Lowside Power Switch

Infineon Technologies AG

Datasheet Details

Part number	BTS141
Manufacturer	Infineon Technologies AG
File Size	197.94 KB
Description	Smart Lowside Power Switch
Datasheet	BTS141_InfineonTechnologiesAG.pdf

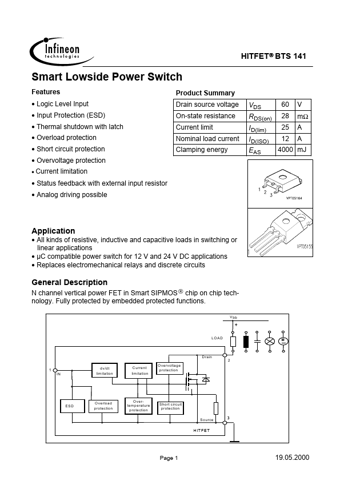

N channel vertical power FET in Smart SIPMOS  chip on chip technology.

Logic Level Input.
Input Protection (ESD).
=Thermal shutdown with latch.
Overload protection.
Short circuit protection.
Overvoltage protection.
Current Product Summary Drain source voltage On-state resistance Current limit Nominal load current Clamping energy VDS RDS(on) I D(lim) I D(ISO) EAS 60 28 25 12 V mΩ A A 4000 mJ limitation.
Status feedback with external input resistor.
Analog driving possible Applicati.
